HIGHTOP MACHINERY

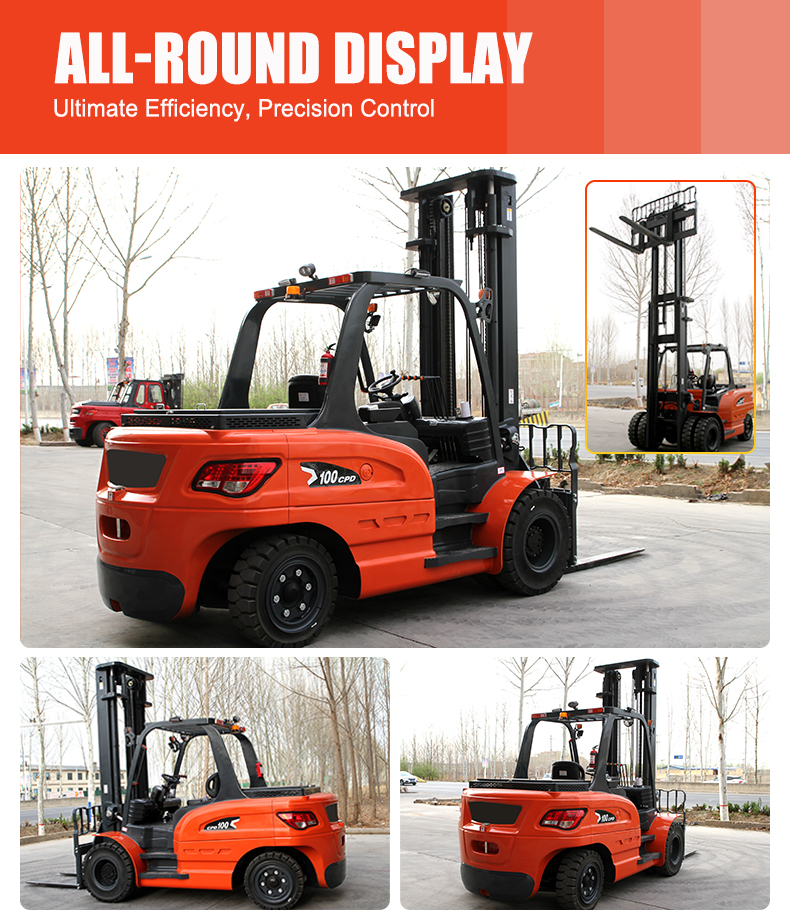

HTCPD100 Electric Forklift

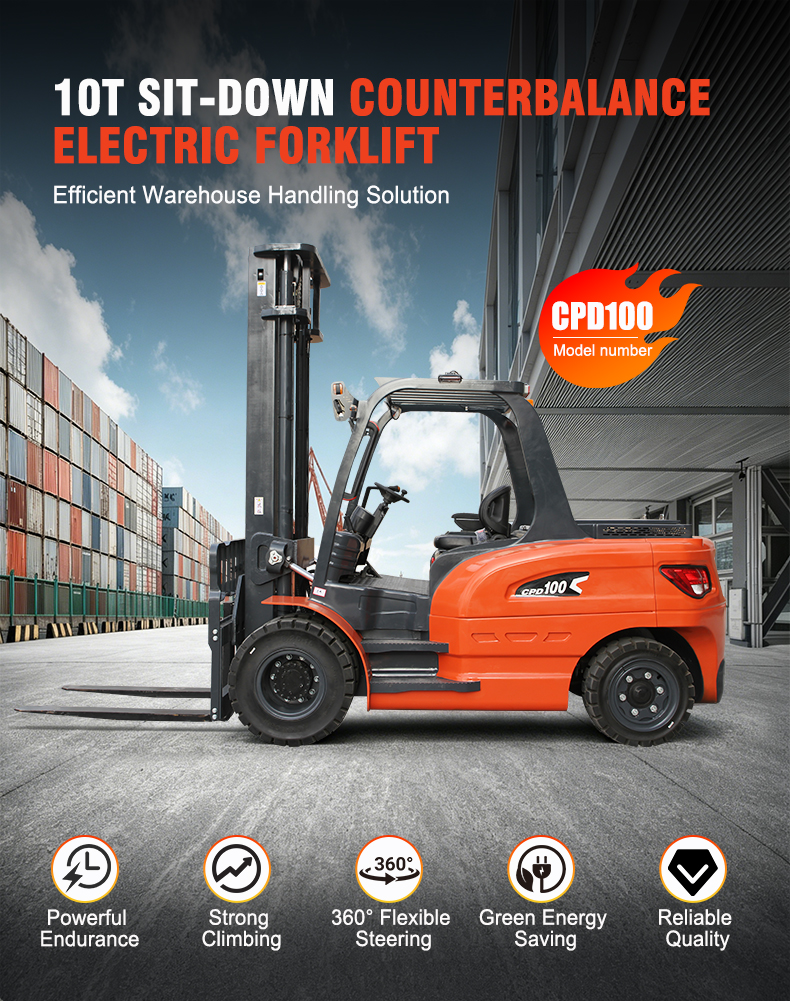

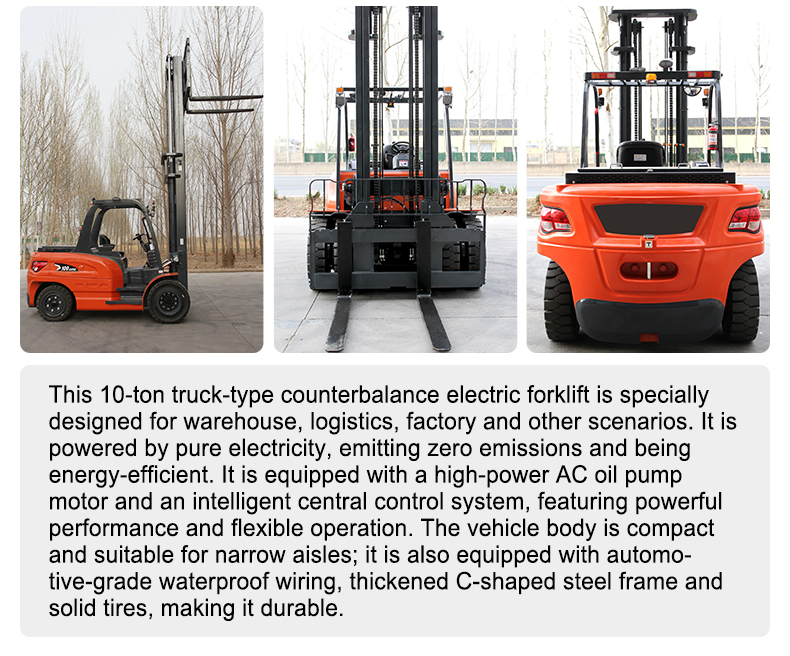

This 10-ton truck-type counterbalance electric forklift is specially designed for warehouse, logistics, factory and other scenarios.

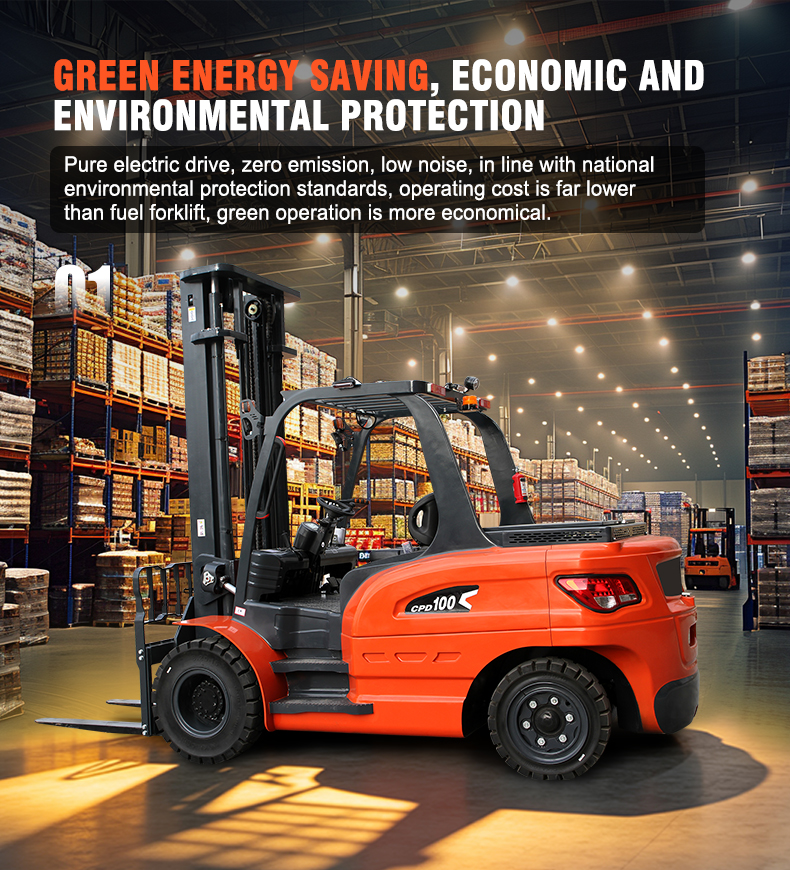

It is powered by pure electricity, emitting zero emissions and being energy-efficient.

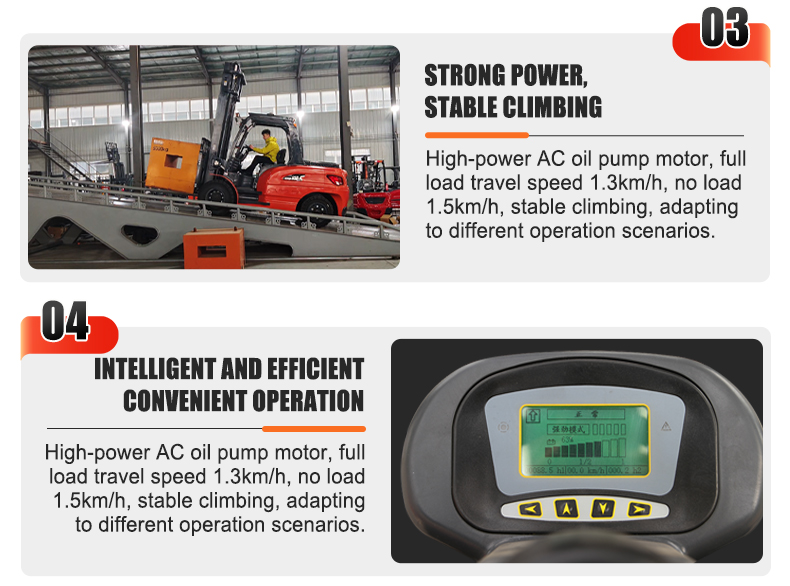

It is equipped with a high-power AC oil pump motor and an intelligent central control system, featuring powerful performance and flexible operation.

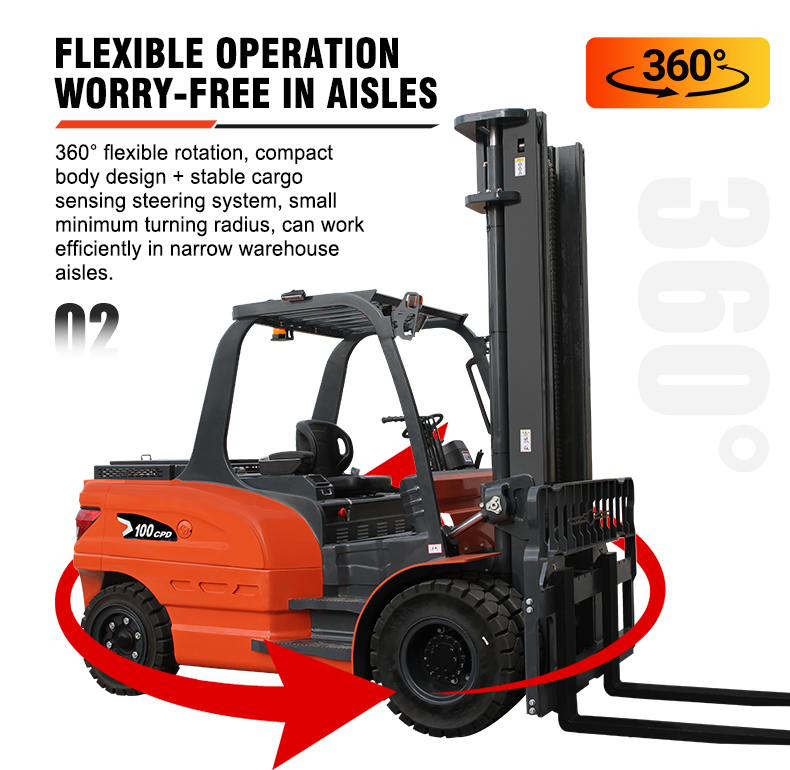

The vehicle body is compact and suitable for narrow aisles;

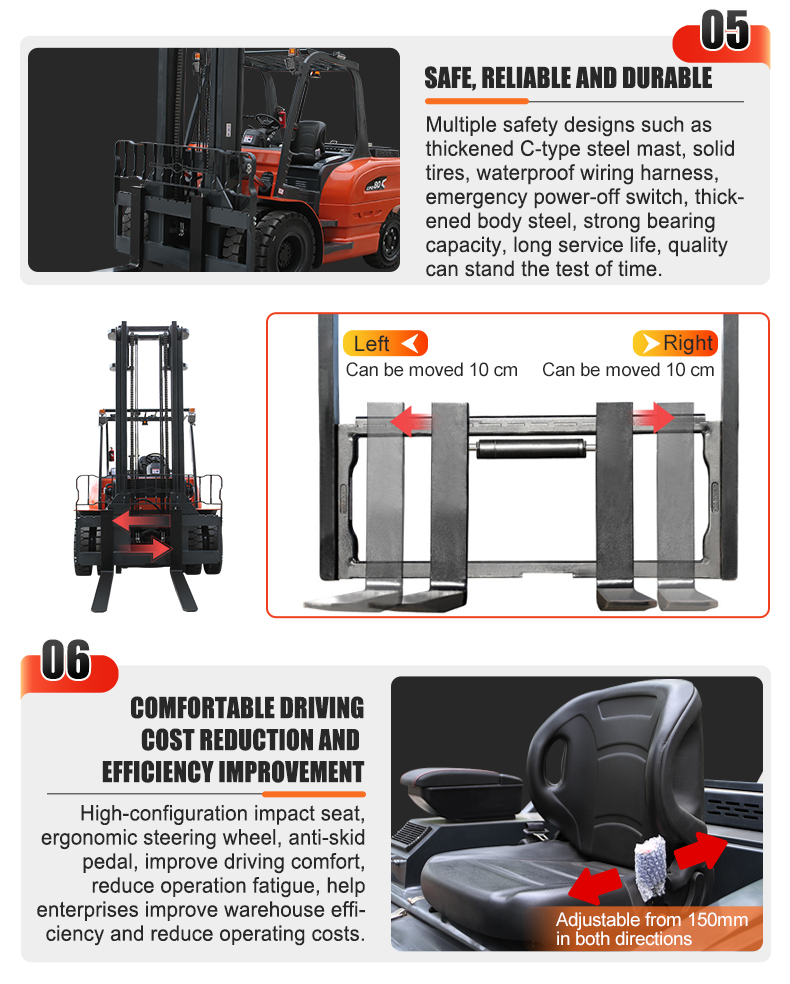

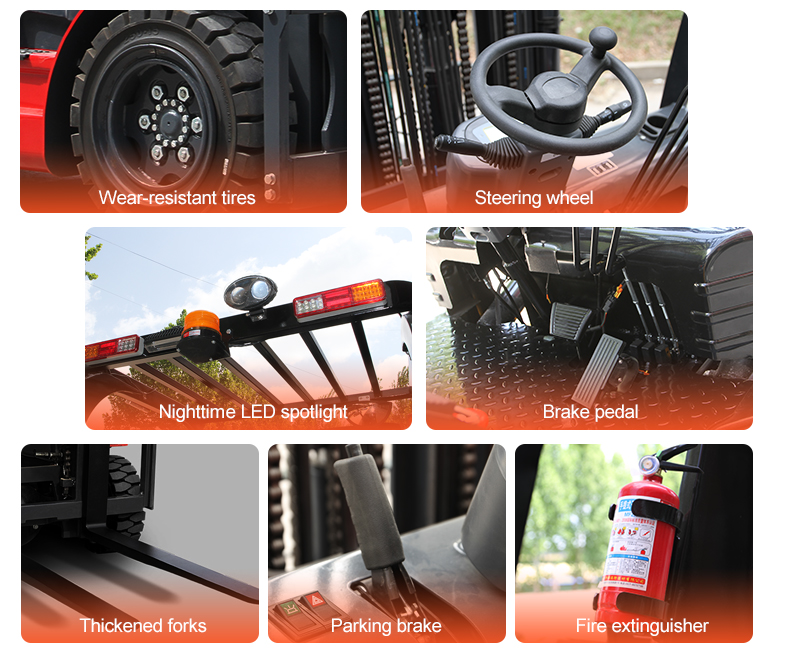

it is also equipped with automotive-grade waterproof wiring, thickened C-shaped steel frame and solid tires, making it durable.

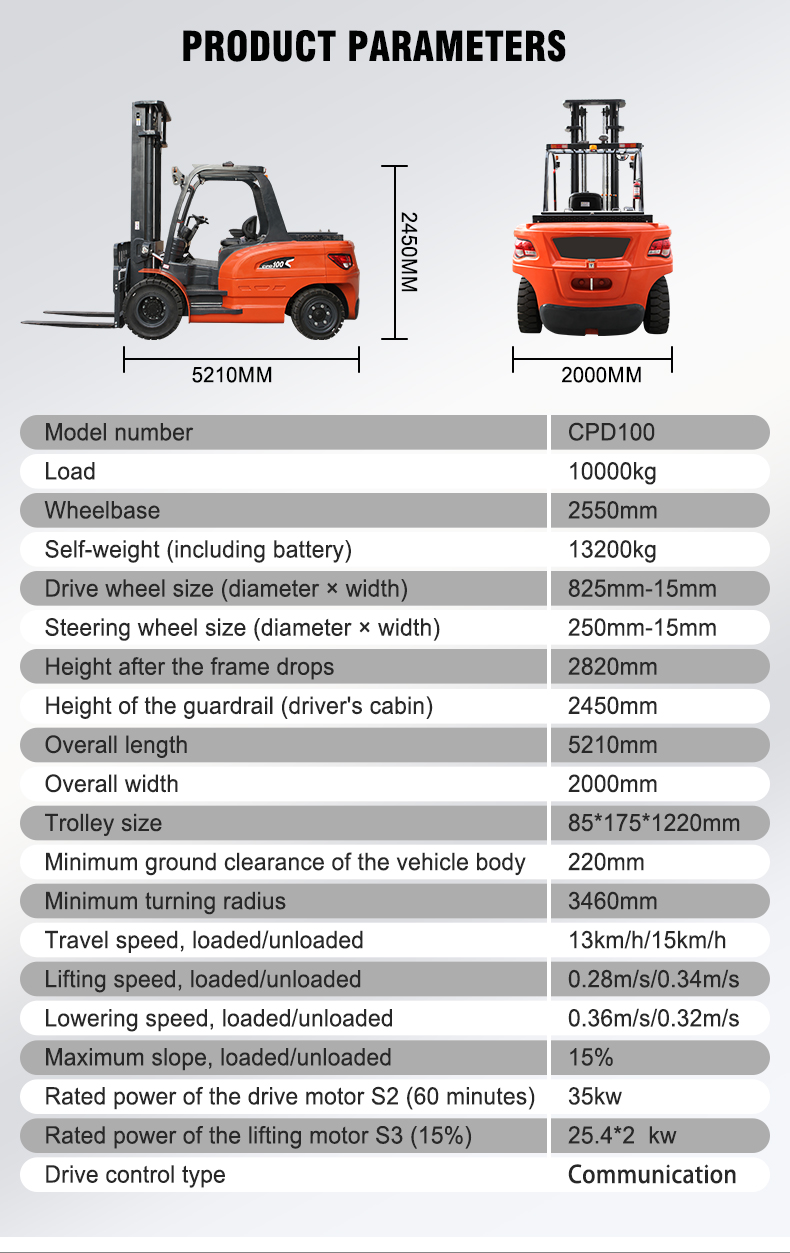

HTCPD100 Electric Forklift Prouduct Parameters
Model number
CPD100
Load
10000kg
Wheelbase
2550mm

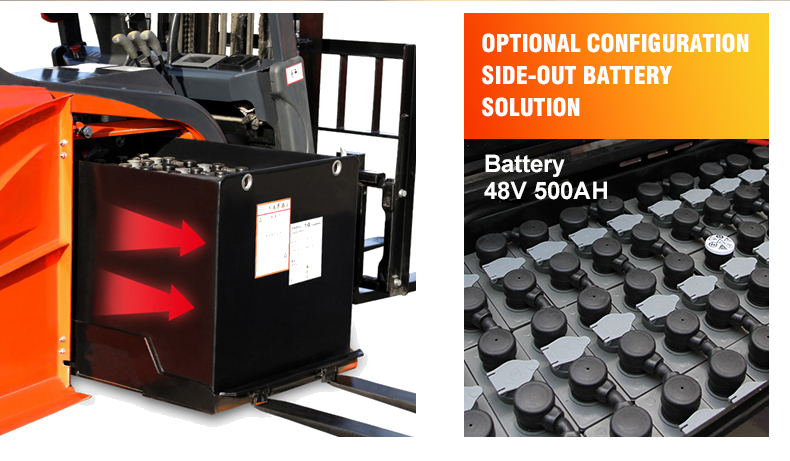

Self-weight (including battery)
13200kg
Drive wheel size (diameter × width)
825mm-15mm
Steering wheel size (diameter × width)
250mm-15mm
Height after the frame drops
2820mm
Height of the guardrail (driver's cabin)
2450mm
Overall length
5210mm
Overall width
2000mm
Trolley size
851751220mm
Minimum ground clearance of the vehicle body
220mm
Minimum turning radius
3460mm
Travel speed, loaded/unloaded
13km/h/15km/h
Lifting speed, loaded/unloaded
0.28m/s/0.34m/s
Lowering speed, loaded/unloaded
0.36m/s/0.32m/s
Maximum slope, loaded/unloaded
15%
Rated power of the drive motor S2 (60 minutes)
35kw
Rated power of the lifting motor S3 (15%)
25.4*2 kw
Drive control type
Communication
