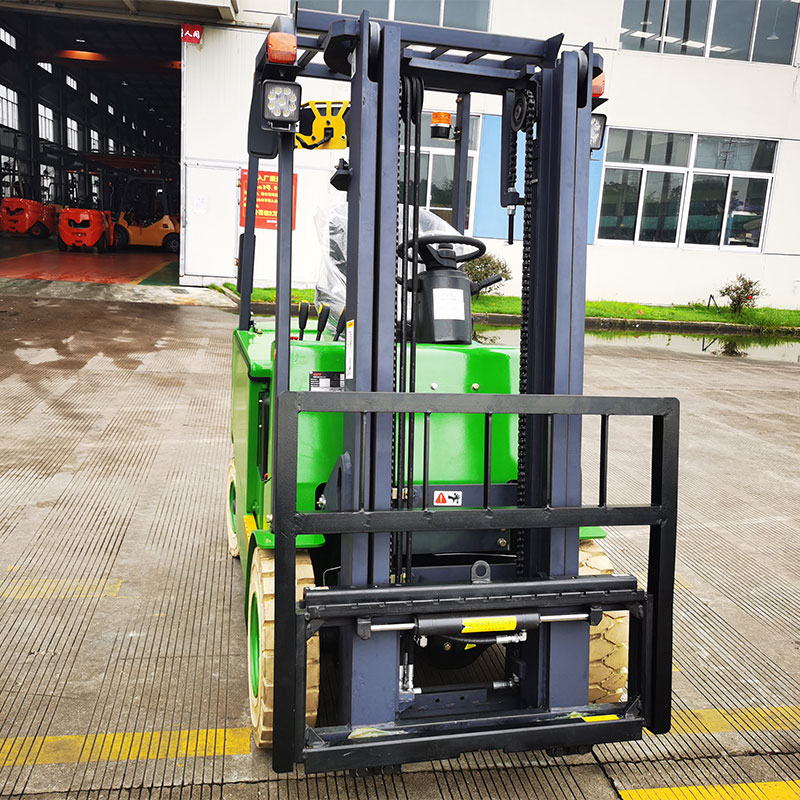

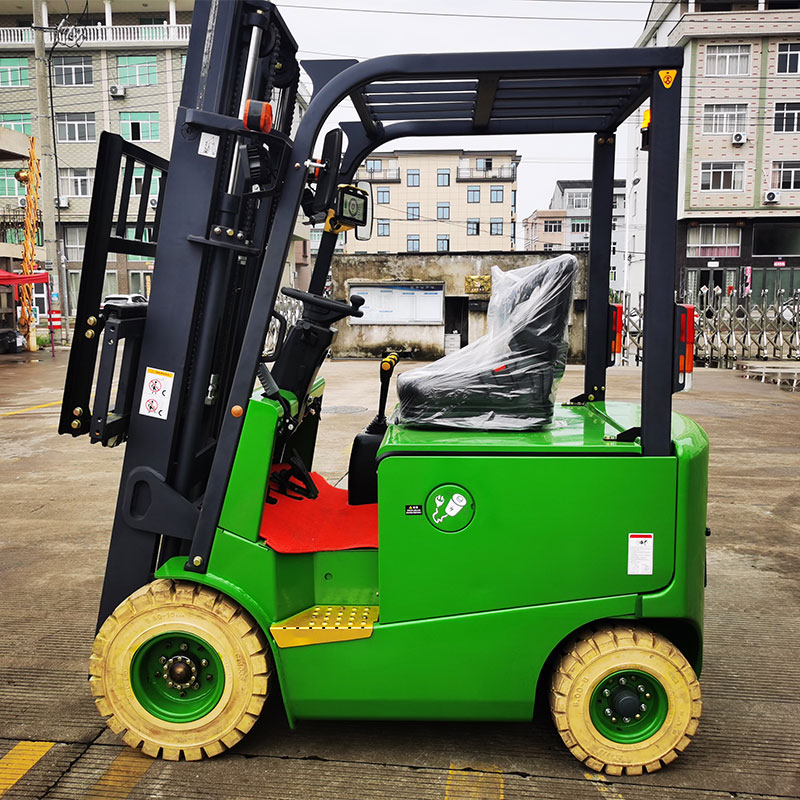

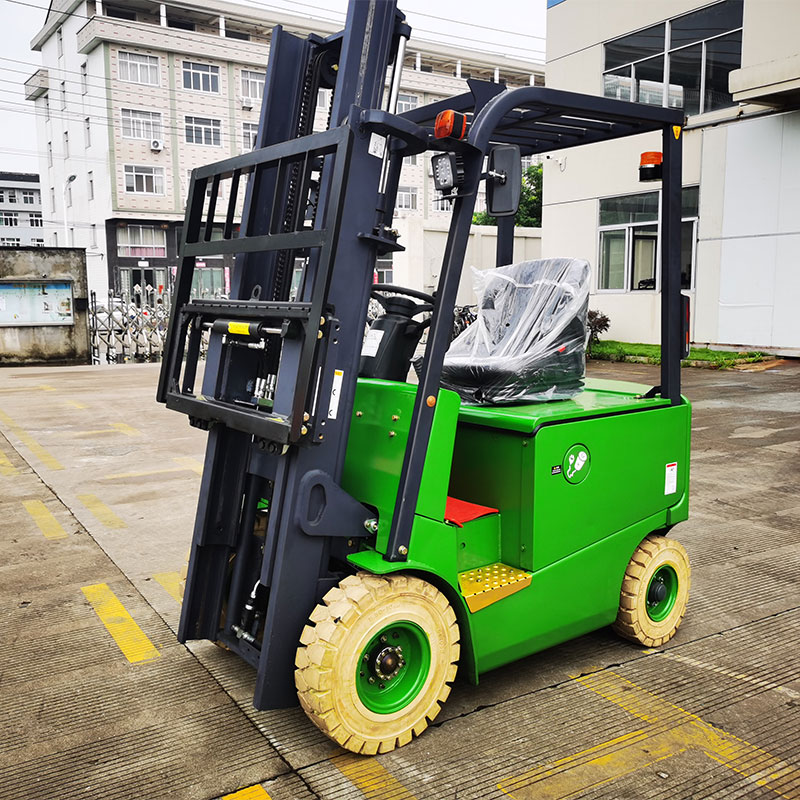

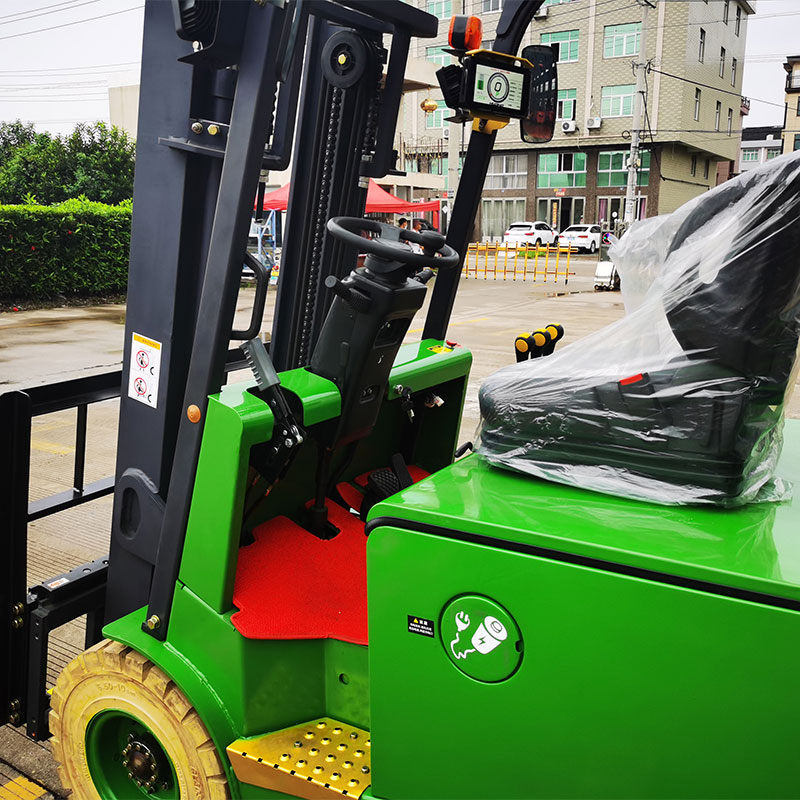

HT1.5ton -1.8ton electric forklift

HT1.5-1.8 ton electric forklift

Model

HT15

HT18

Rated capacity

1500kg

1800kg

Load center

450mm

450mm

Lift height

3000mm

3000mm

Free lift height

50mm

50mm

Fork size(L*W*T)

920*100*35mm

920*100*35mm

Fork outside spread(Min./Max.)

200/980mm

200/980mm

Mast tilt range(F/R)

6112deg

6112deg

Front overhang

548mm

548mm

without of fork

2150mm

2200mm

with fork

3070mm

3120mm

wheel width

1120mm

1112deg

Mast lowered height

2025mm

2025mm

Mast extended height

3960mm

3960mm

Overhead guard height

2150mm

2150mm

Turning radius

1960mm

2120mm

Min. right angle aisle width

1580mm

1590mm

Travel speed (unload/full load)

16/14km/h

16/14km/h

Lift speed (unload/ full load)

3701320mm/s

370/320mm/s

Self weight

2250kg

2450kg

Max. gradeability

15°

15°
