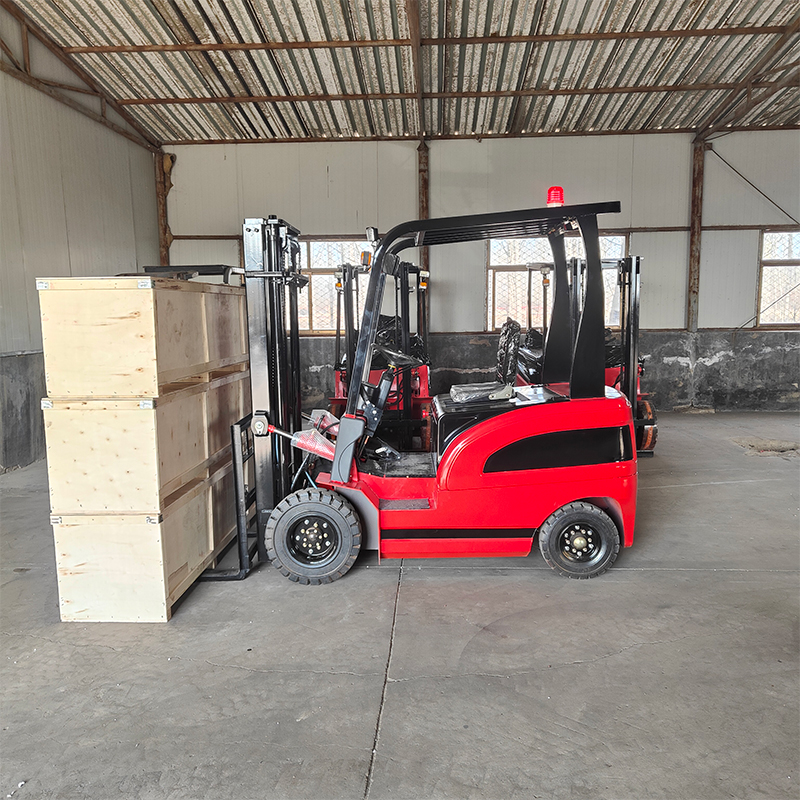

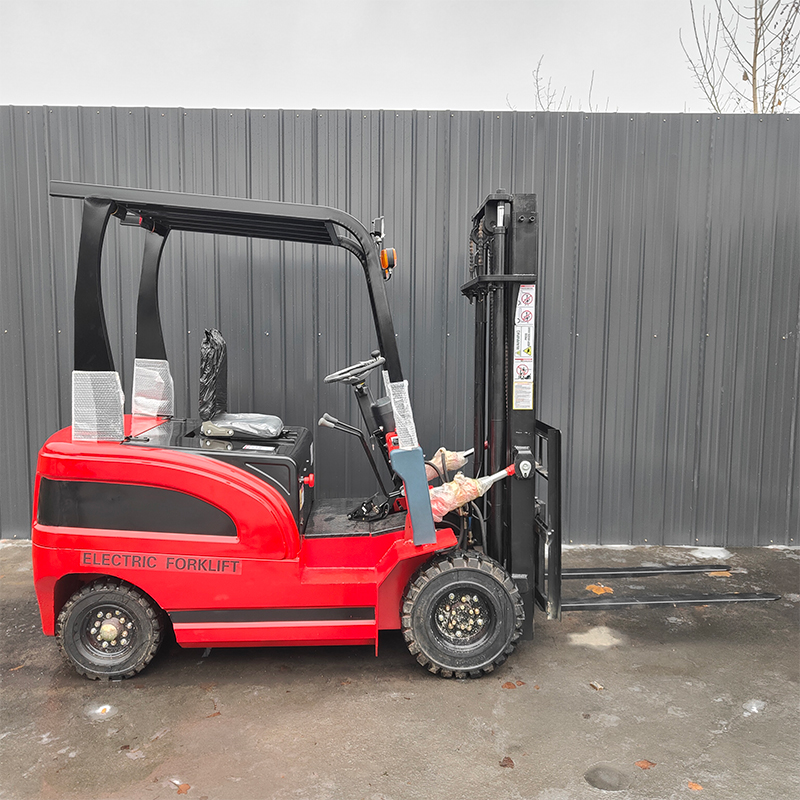

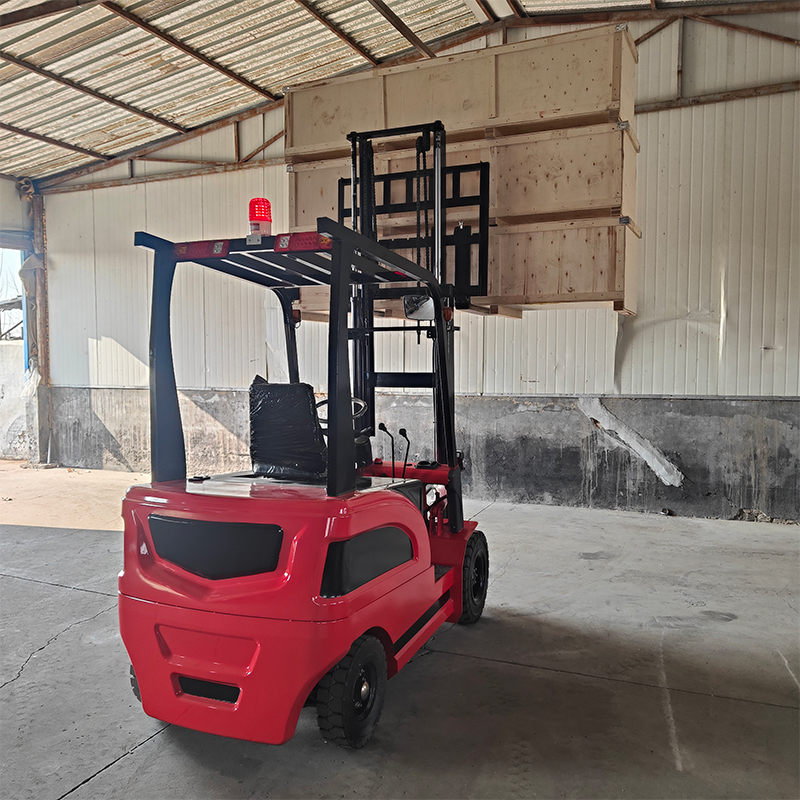

1.5ton electric forklift configuration

Walking motor

A3 kW AC motor

jacking

motor

A 2.5 kW AC motor

driving axle

Integral cast-steel bridge(aggravated)

Turn to the

rear bridge

Tighten the

double-steel plate

steering bridge

Steering mode

Hydraulic power(Microcomputer control)(Can lift while walking)

Tyre (solid

grade A)

Front650-10 back

500-8

Forklift door frame

Double cylinder(Special forklift truck type steel)

additional

weight

Concrete (optional

nail slag or cast iron

weight)

dead-weight(with batteries )

2300kg

Rated load

1500kg(Overload is

strictly prohibited)

Battery quantity

5 units(lead-acid batteries)

battery

capacity

100ah

Charging voltage

220v

output

voltage

60v

go up

3m (customizable)

Battery life

continued for 7 –

8h

Charging time

5-6 Hours

(Six paragraphs

of intelligent

full of self-stop)

No increase

(overall

height)

2.15 Meters

(Reduced)

Body size

2.3m * 1.2 m *

2.15 m

(Excluding fork

length)

Goods fork

1.07 m (optional)

(Once forming with

anti-wear forging)

Paint (car paint)

Red, green,

Blue, yellow

(optional)

brake mode

Oil brake brake + big

handbrake
