HTSC300 3 Ton Spider Crane Instruction

HTSC300 3 Ton Spider Crane

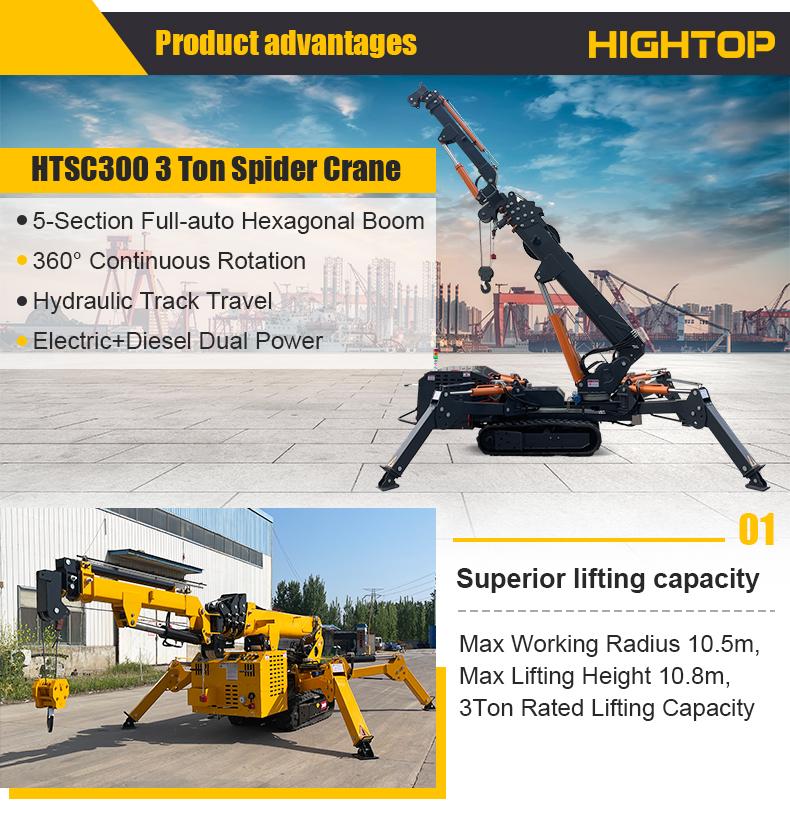

5-Section Full-auto Hexagonal Boom360° Continuous RotationHydraulic Track TravelElectric+Diesel Dual Power

Superior lifting capacity

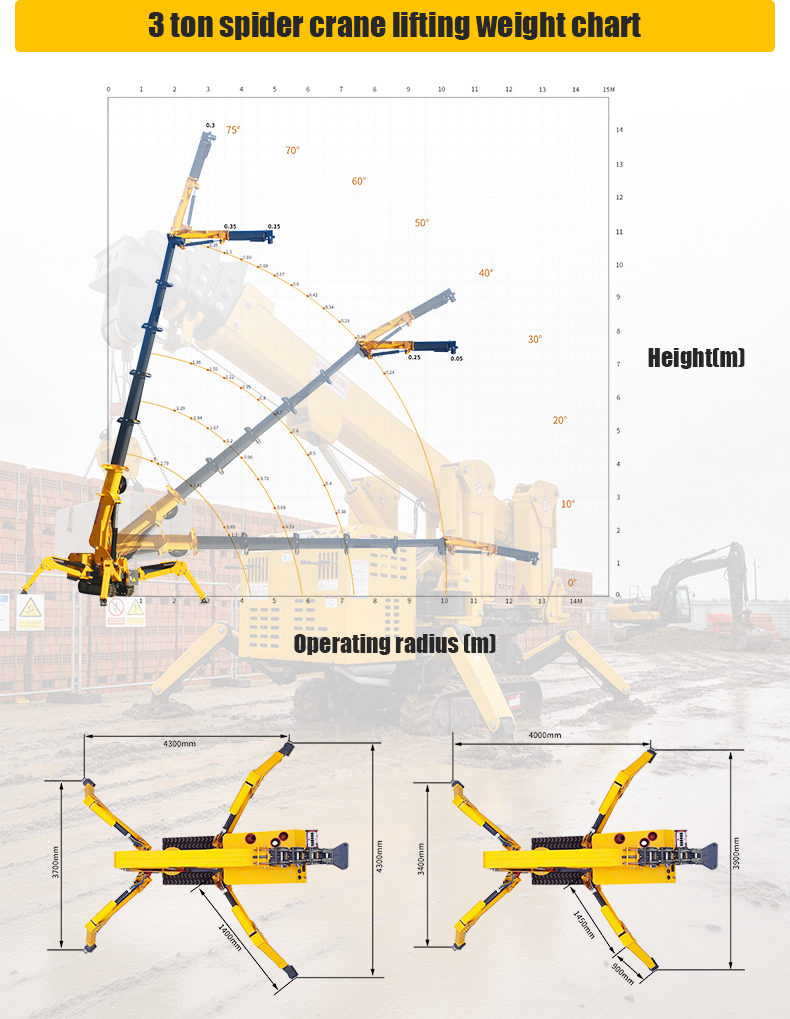

Max Working Radius 10.5m,Max Lifting Height 10.8m,3Ton Rated Lifting Capacity

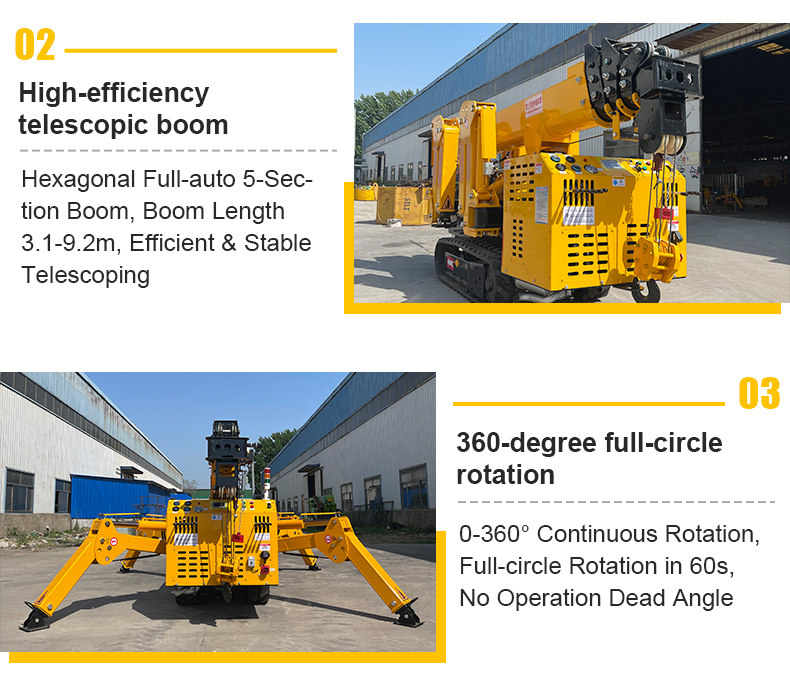

High-efficiencytelescopic boomHexagonal Full-auto 5-Sec-tion Boom, Boom Length3.1-9.2m, Efficient & StableTelescoping

360-degree full-circlerotation

0-360° Continuous Rotation,Full-circle Rotation in 60s,No Operation Dead Angle

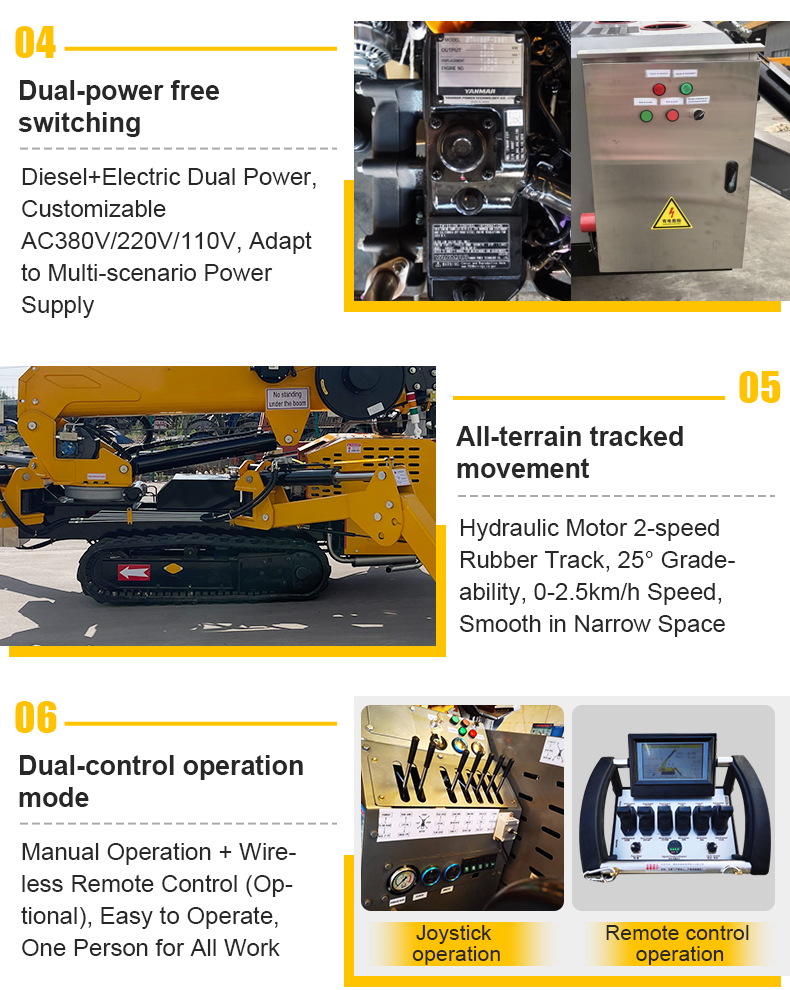

Dual-power freeswitching

Diesel+Electric Dual Power,CustomizableAC380V/220V/110V, Adaptto Multi-scenario PowerSupply

All-terrain trackedmovement

Hydraulic Motor 2-speedRubber Track, 25° Grade-ability, 0-2.5km/h Speed,Smooth in Narrow Space

Dual-control operationmode

Manual Operation + Wire-less Remote Control (Op-tional), Easy to Operate,One Person for All Work

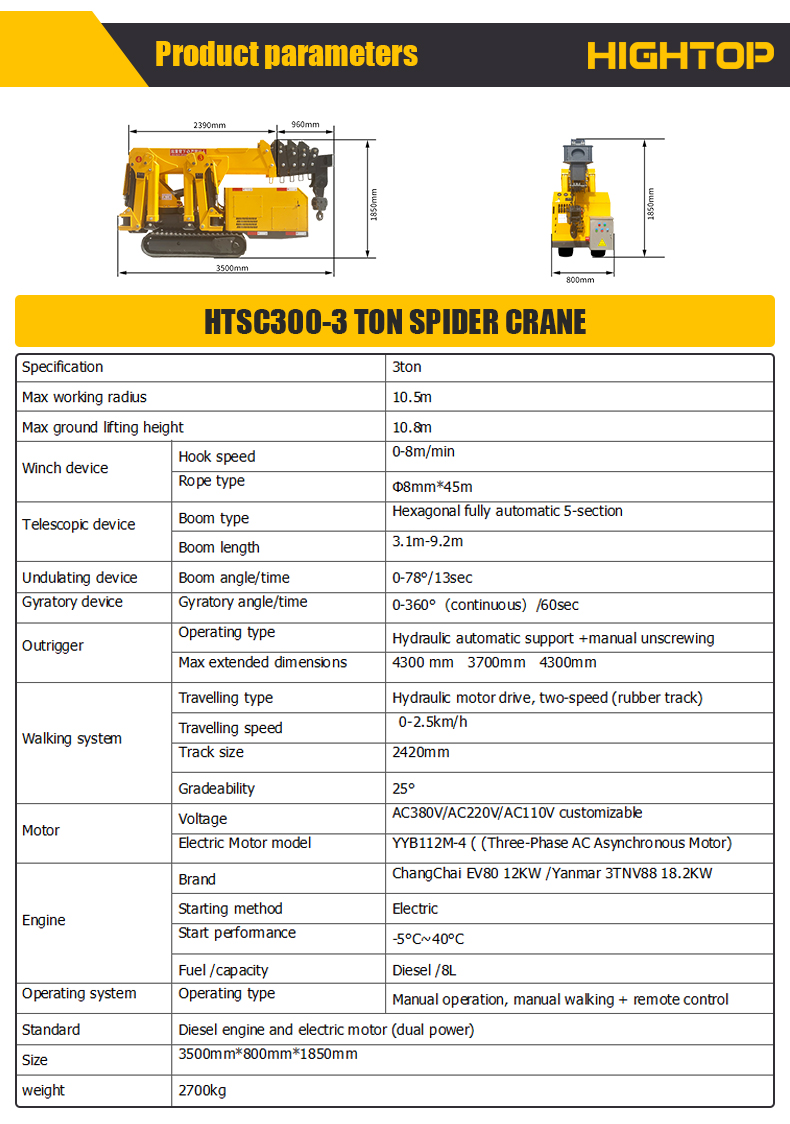

Specification		3ton
Max working radius		10.5m
Max ground lifting height		10.8m
Winch device	Hook speed	0-8m/min
	Rope type	Φ8mm*45m
Telescopic device	Boom type	Hexagonal fully automatic 5-section
	Boom length	3.1m-9.2m
Undulating device	Boom angle/time	0-78°/13sec
Gyratory device	Gyratory angle/time	0-360° (continuous)/60sec
Outrigger	Operating type	Hydraulic automatic support +manual unscrewing
	Max extended dimensions	4300 mm 3700mm 4300mm
Walking system	Travelling type	Hydraulic motor drive, two-speed (rubber track)
	Travelling speed	0-2.5km/h
	Track size	2420mm
	Gradeability	25°
Motor	Voltage	AC380V/AC220V/AC110V customizable
	Electric Motor model	YYB112M-4 ((Three-Phase AC Asynchronous Motor)
Engine	Brand	ChangChai EV80 12KW /Yanmar 3TNV88 18.2KW
	Starting method	Eectric
	Start perfommance	-5°C~40°C
	Fuel/capacity	Diesel /8L
Operating system	Operating type	Manual operation, manual waking + remote control
Standard	Diesel engine and electric motor (dual power)
Size	3500mm800mm1850mm
weight	2700kg
