8-Ton Spider Crane

Tags： 8-Ton Spider Crane Spider Crane Date：2026/03/04

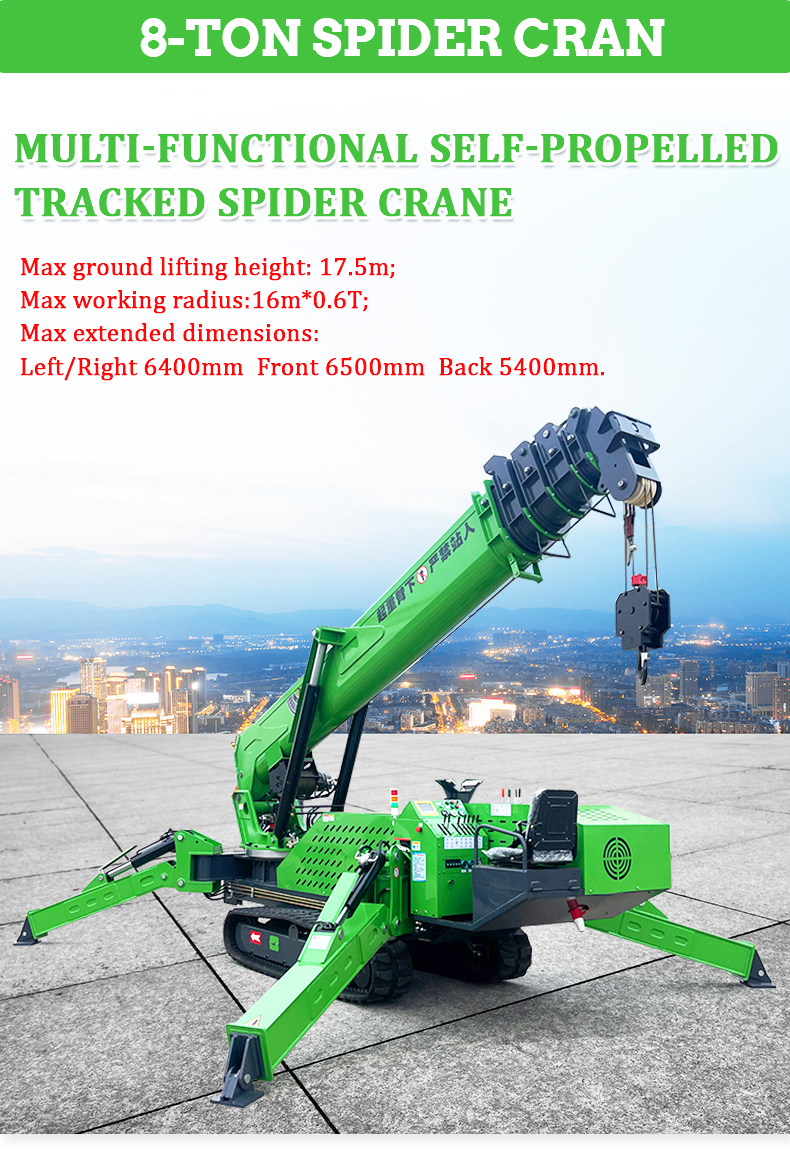

8-Ton Spider Crane Instruction

MULTI-FUNCTIONAL SELF-PROPELLEDTRACKED SPIDER CRANE

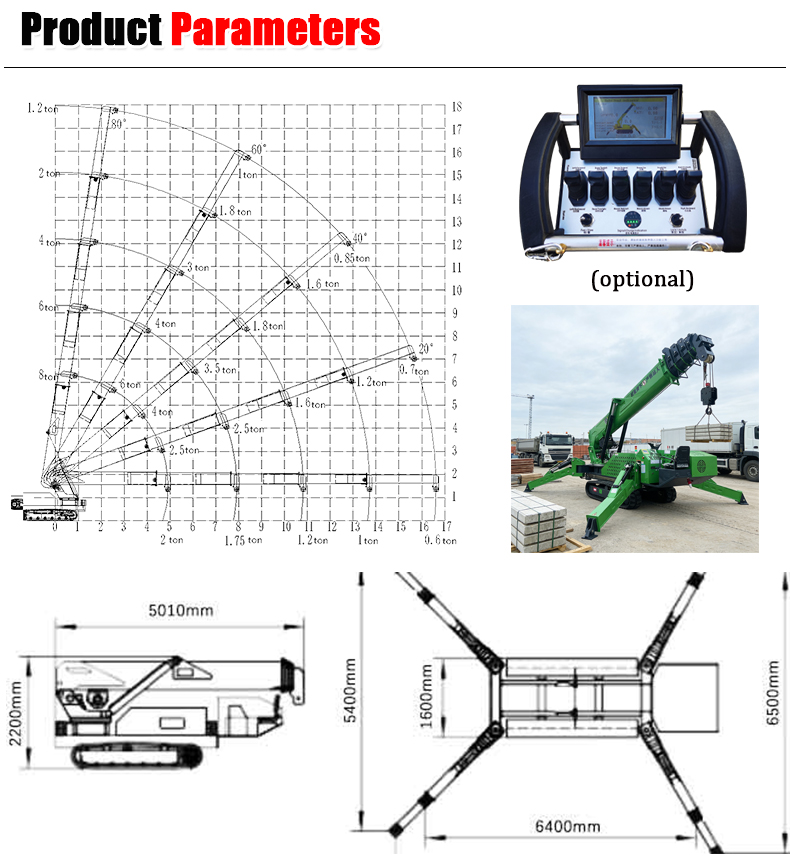

Max ground lifting height: 17.5m;

Max working radius:16m*0.6T;

Max extended dimensions:

Left/Right 6400mm Front 6500mmBack 5400mm.

Wide Application

Used in construction, warehousing, logistics, and landscaping,great for lifting, transportation, and maintenance tasks.

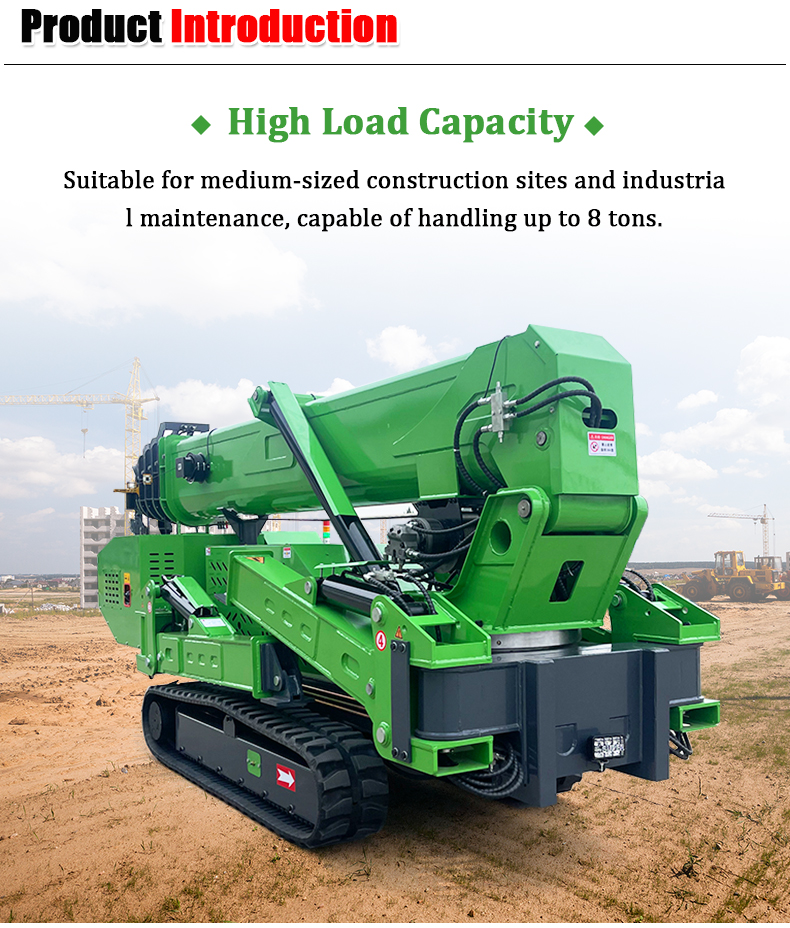

High Load Capacity

Suitable for medium-sized construction sites and industriaI maintenance, capable of handling up to 8 tons.

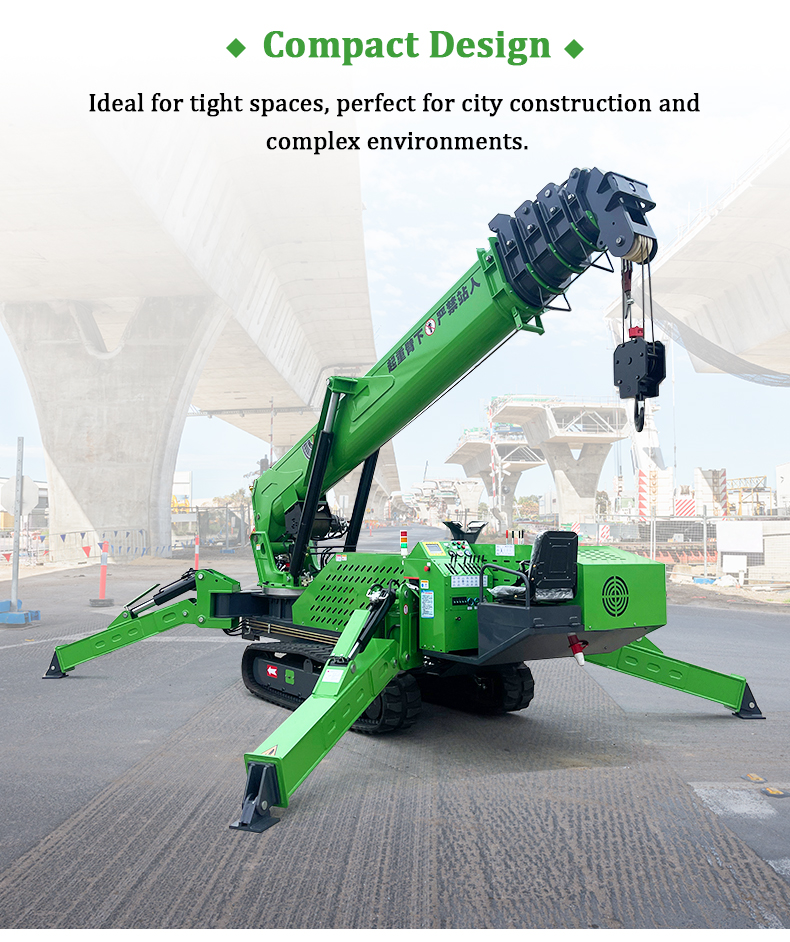

Compact Design

Ideal for tight spaces, perfect for city construction andcomplex environments.

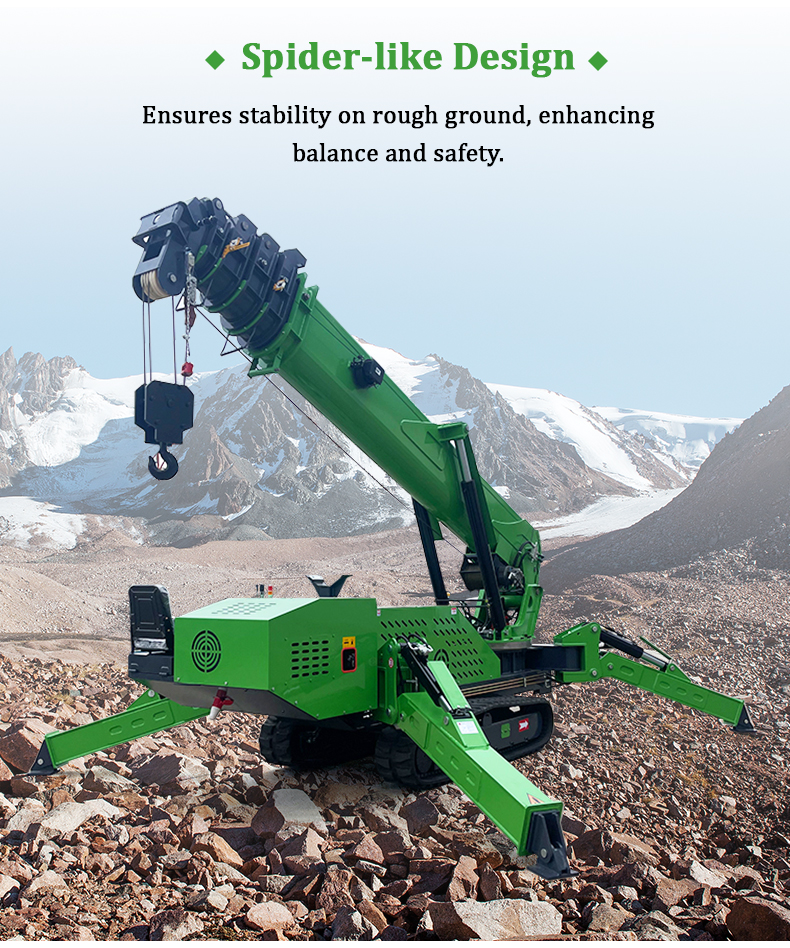

Spider-like Design

Ensures stability on rough ground, enhancingbalance and safety.

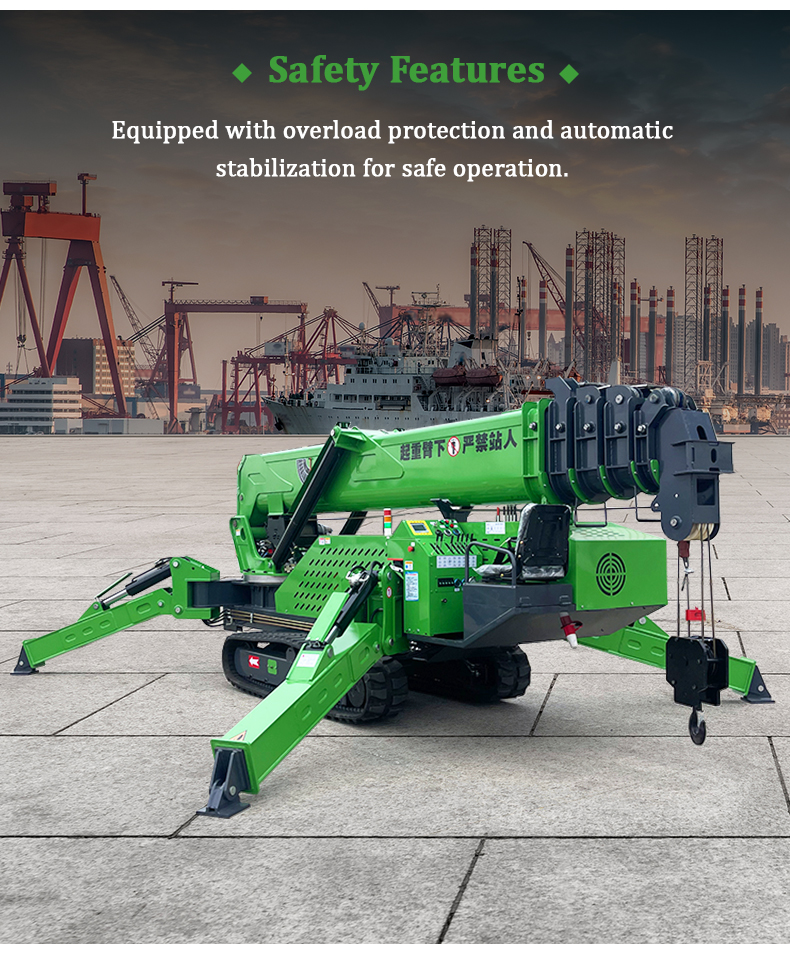

Safety Features

Equipped with overload protection and automaticstabilization for safe operation.

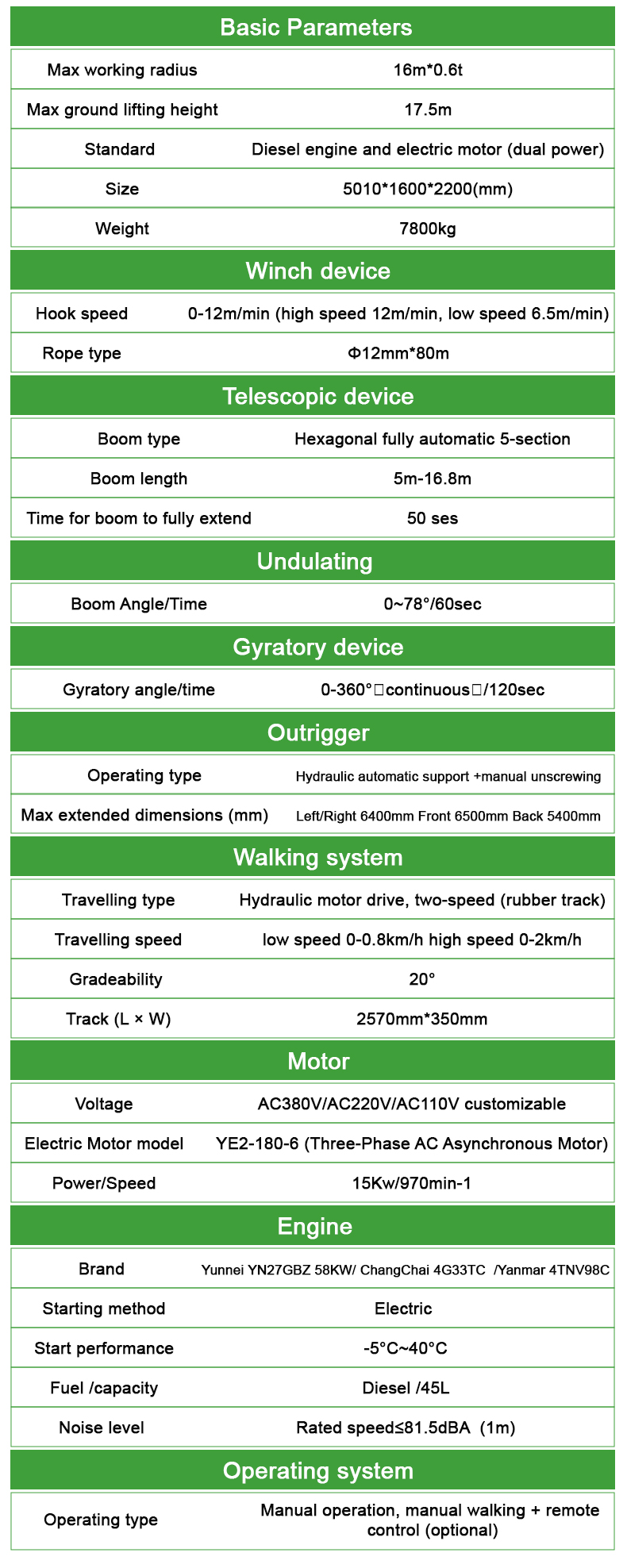

Basic Parameters
Max working radius	16m*0.6t
Max ground lifting height	17.5m
Standard	Diesel engine and electric motor (dual power)
Size	501016002200(mm)
Weight	7800kg
Winch device
Hook speed	0-12m/min (high speed 12m/min, low speed 6.5m/min)
Rope type	012mm*80m
Telescopic device
Boom type	Hexagonal fully automatic 5-section
Boom length	5m-16.8m
Time for boom to fully extend	50 ses
Undulating
Boom Angle/Time	0~78°/60sec
Gyratory device
Gyratory angle/time	0-360°continuous/120sec
Walking system
Travelling type	Hydraulic motor drive, two-speed (rubber track)
Travelling speed	low speed 0-0.8km/h high speed 0-2km/h
Gradeability	20°
Track (L x W)	2570mm*350mm
Motor
Voltage	AC380V/AC220V/AC110V customizable
Electric Motor model	YE2-180-6(Three-PhaseAC Asynchronous Motor)
Power/Speed	15Kw/970min-1
Engine
Brand	Yunnei YN27GBZ 58KW/ ChangChai4G33TC /Yanmar 4TNV98C
Starting method	Electric
Start performance	-5°C~40°℃
Fuel /capacity	Diesel /45L
Noise level	Rated speed≤81.5dBA(1m)
Operating system
Operating type	Manual operation, manual walking + remote control (optional)
