Mini Wheeled Cement Mixer HT-800 Product Features

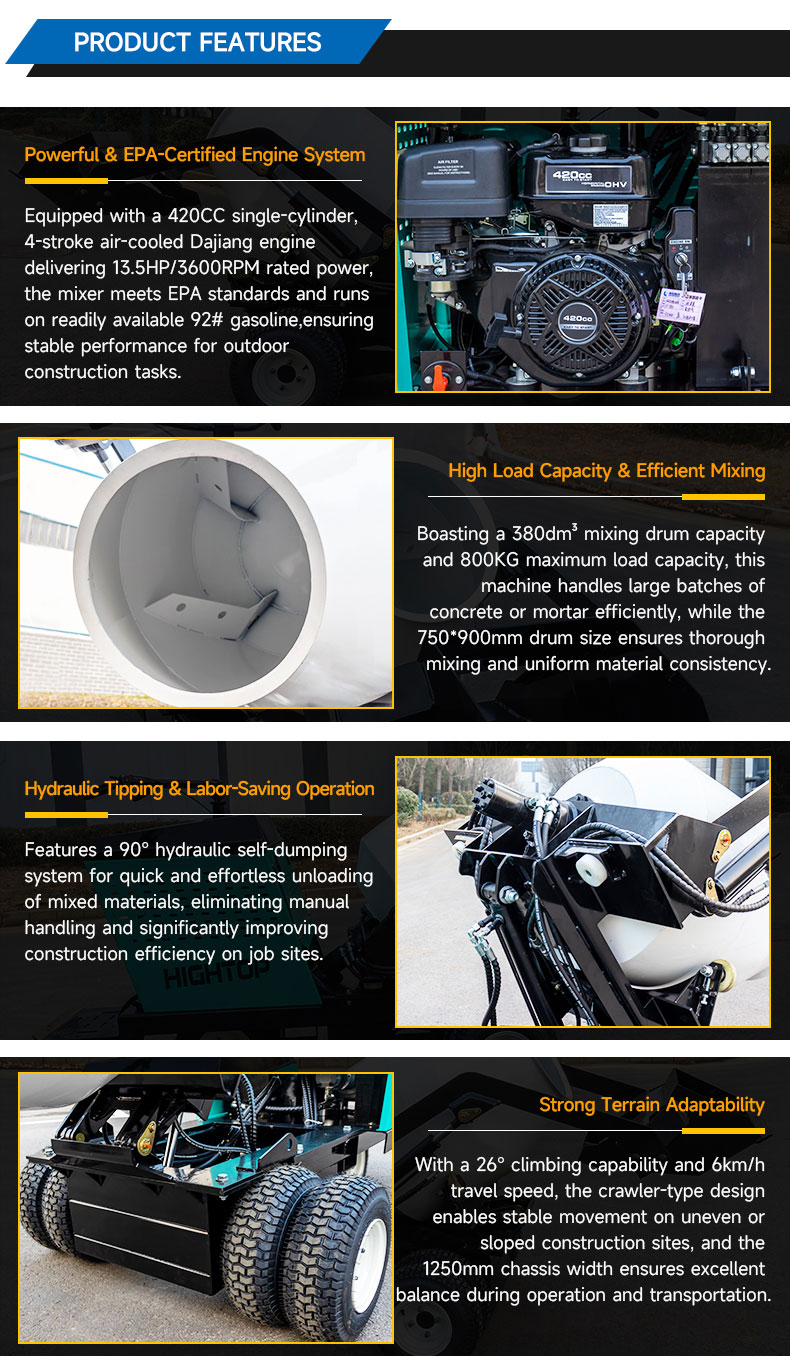

1. Powerful & EPA-Certified Engine System
Equipped with a 420CC single-cylinder, 4-stroke air-cooled Dajiang engine delivering 13.5HP/3600RPM rated power, the mixer meets EPA standards and runs on readily available 92# gasoline, ensuring stable performance for outdoor construction tasks.
2. High Load Capacity & Efficient Mixing
Boasting a 380dm³ mixing drum capacity and 800KG maximum load capacity, this machine handles large batches of concrete or mortar efficiently, while the 750*900mm drum size ensures thorough mixing and uniform material consistency.
3. Hydraulic Tipping & Labor-Saving Operation
Features a 90° hydraulic self-dumping system for quick and effortless unloading of mixed materials, eliminating manual handling and significantly improving construction efficiency on job sites.
4. Strong Terrain Adaptability
With a 26° climbing capability and 6km/h travel speed, the Wheeled -type design enables stable movement on uneven or sloped construction sites, and the 1250mm chassis width ensures excellent balance during operation and transportation.

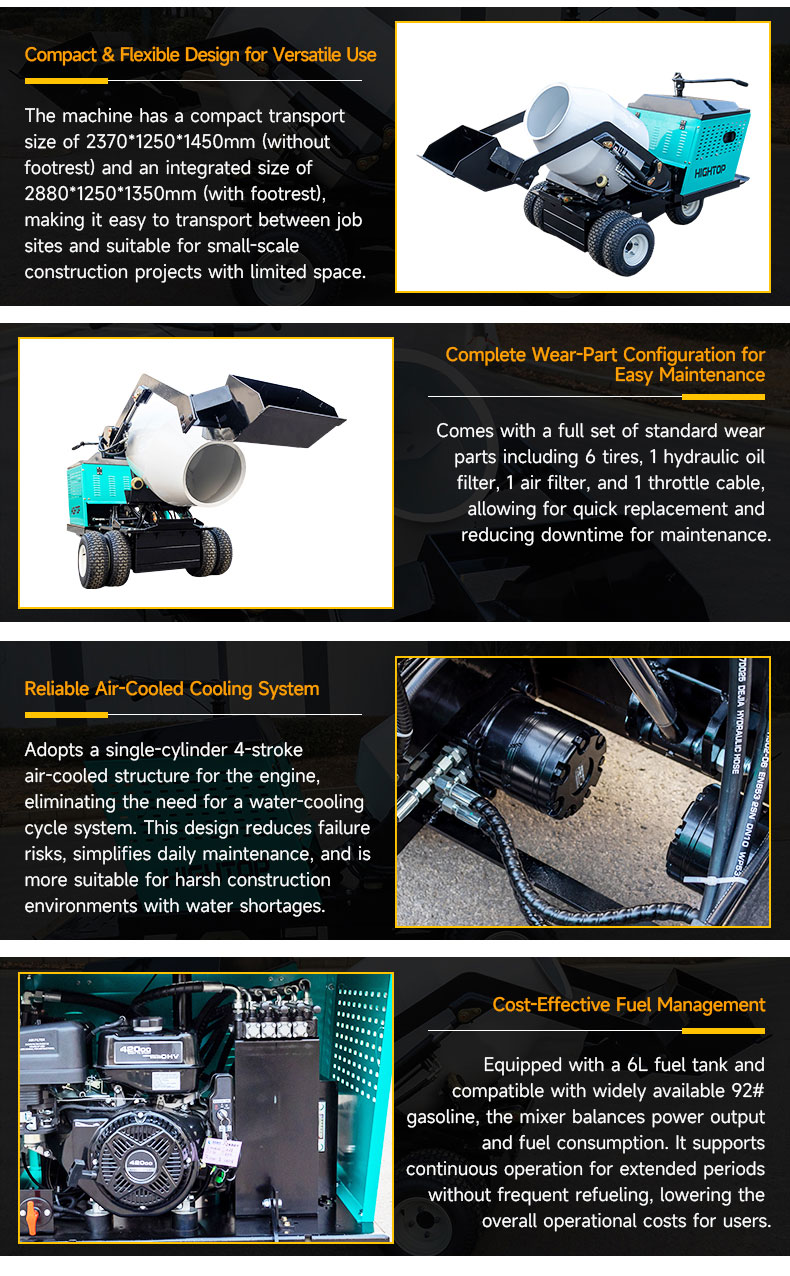

5. Compact & Flexible Design for Versatile Use
The machine has a compact transport size of 2370*1250*1450mm (without footrest) and an integrated size of 2880*1250*1350mm (with footrest), making it easy to transport between job sites and suitable for small-scale construction projects with limited space.
6. Complete Wear-Part Configuration for Easy Maintenance
Comes with a full set of standard wear parts including 6 tires, 1 hydraulic oil filter, 1 air filter, and 1 throttle cable, allowing for quick replacement and reducing downtime for maintenance.
7.Reliable Air-Cooled Cooling System
Adopts a single-cylinder 4-stroke air-cooled structure for the engine, eliminating the need for a water-cooling cycle system. This design reduces failure risks, simplifies daily maintenance, and is more suitable for harsh construction environments with water shortages.
8.Cost-Effective Fuel Management
Equipped with a 6L fuel tank and compatible with widely available 92# gasoline, the mixer balances power output and fuel consumption. It supports continuous operation for extended periods without frequent refueling, lowering the overall operational costs for users.

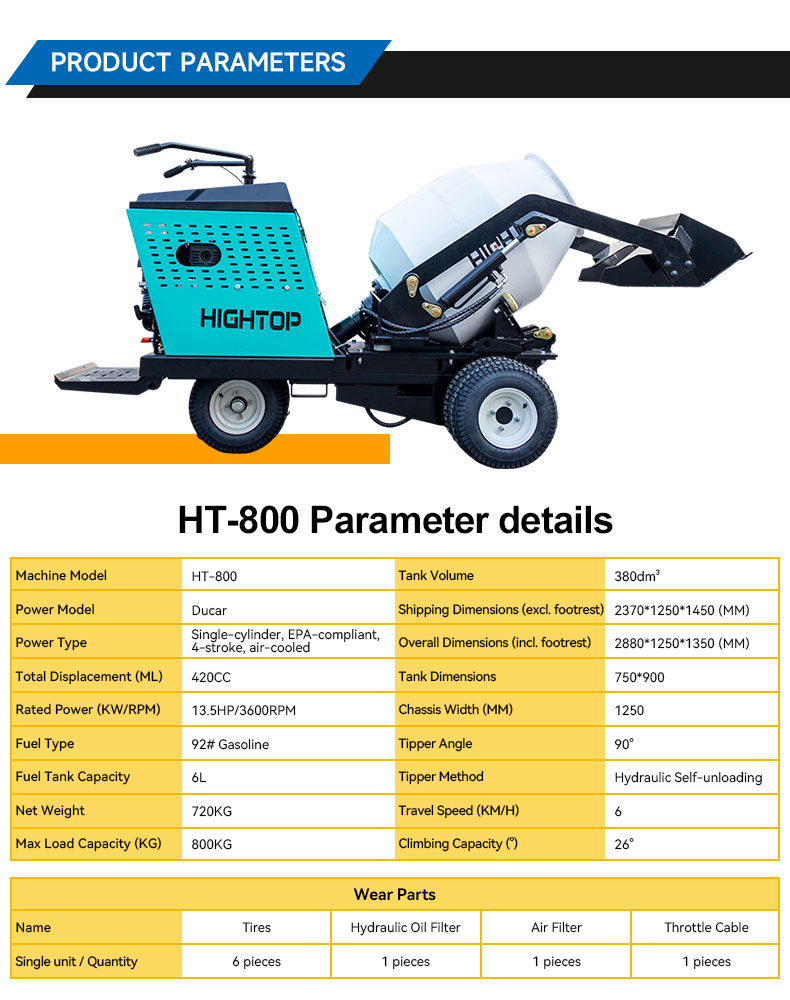

| Machine Model | HT-800 | Tank Volume | 380dm2 | |
| Power Model | Ducar | Shipping Dimensions (excl. footrest) | 2370*1250*1450 (MM) | |
| Power Type | Single-cylinder, EPA-compliant,4-stroke, air-cooled | Overall Dimensions (incl. footrest) | 2880*1250*1350 (MM) | |
| Total Displacement(ML) | 420CC | Tank Dimensions | 750*900 | |
| Rated Power (KW/RPM) | 13.5HP/3600RPM | Chassis Width (MM) | 1250 | |
| Fuel Type | 92# Gasoline | Tipper Angle | 90° | |
| Fuel Tank Capacity | 6L | Tipper Method | Hydraulic Self-unloading | |
| Net Weight | 720KG | Travel Speed (KM/H) | 6 | |
| Max Load Capacity (KG) | 800KG | Climbing Capacity (°) | 26° | |
| Wear Parts | ||||
| Name | Tires | Hydraulic Oil Filter | Air Filter | Throttle Cable |
| Single unit/Quantity | 6 pieces | 1 pieces | 1 pieces | 1 pieces |
