HT-PM80 Log Splitte

HT-PM80 Log Splitte Instruction

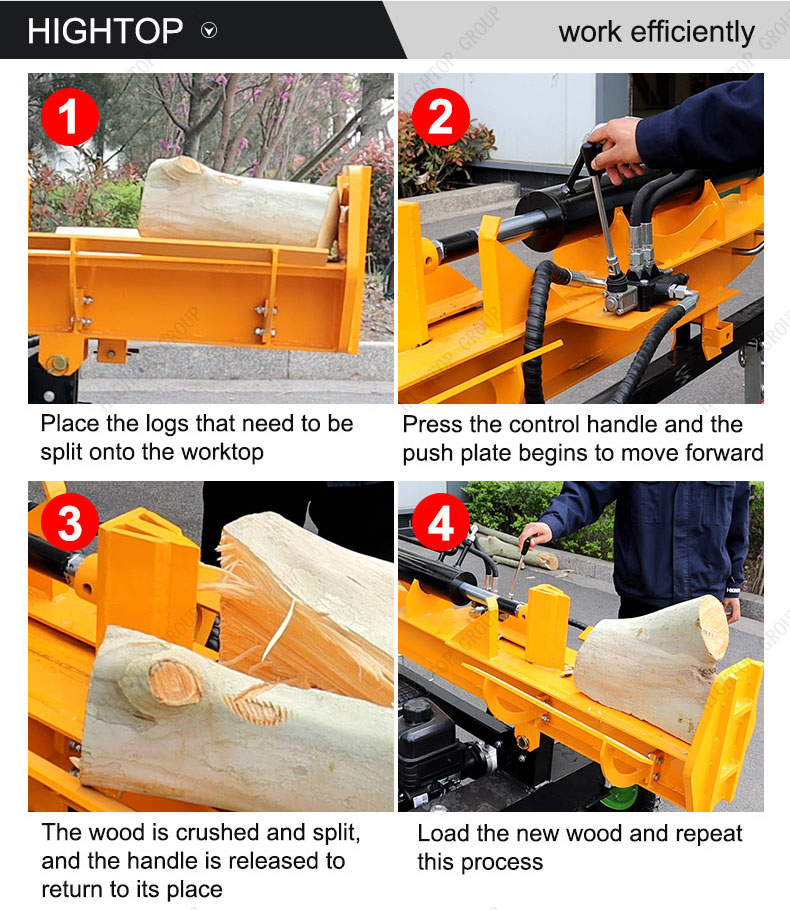

How it works:

1. Place the logs that need to be split onto the worktop.

2. Press the control handle, and the push plate begins to move forward.

3. The wood is crushed and split, and the handle is released to return to its place.

4. Load the new wood and repeat this process.

Are you still using the traditional way of splitting firewood?

Manual labor is time-consuming and laborious

Tired and having a sore back and aching waist

Axes are prone to fall and unsafe

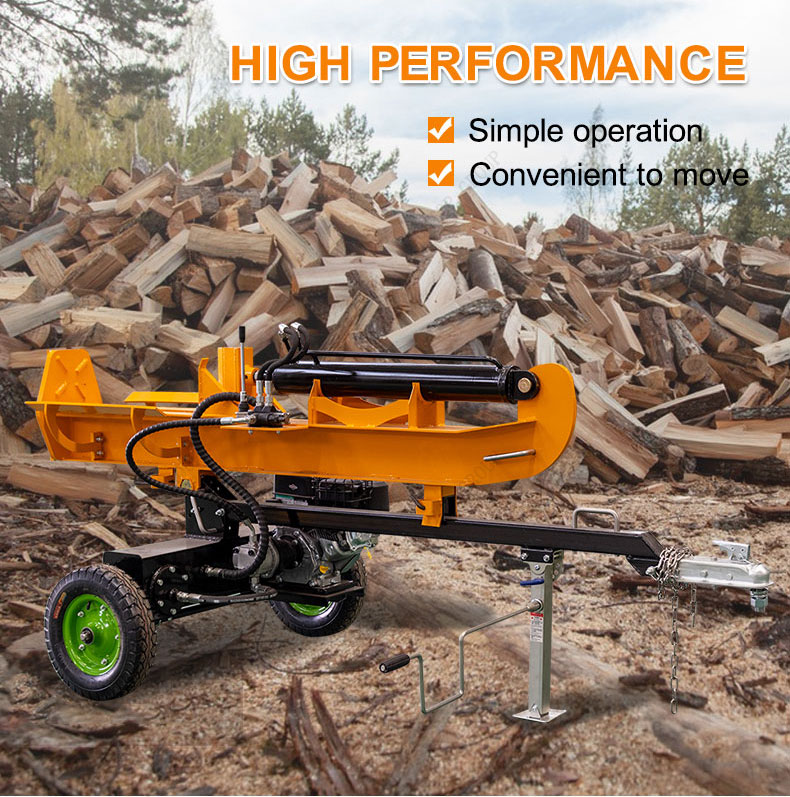

HICH PERFORMANCE

Simple operation

Convenient to move

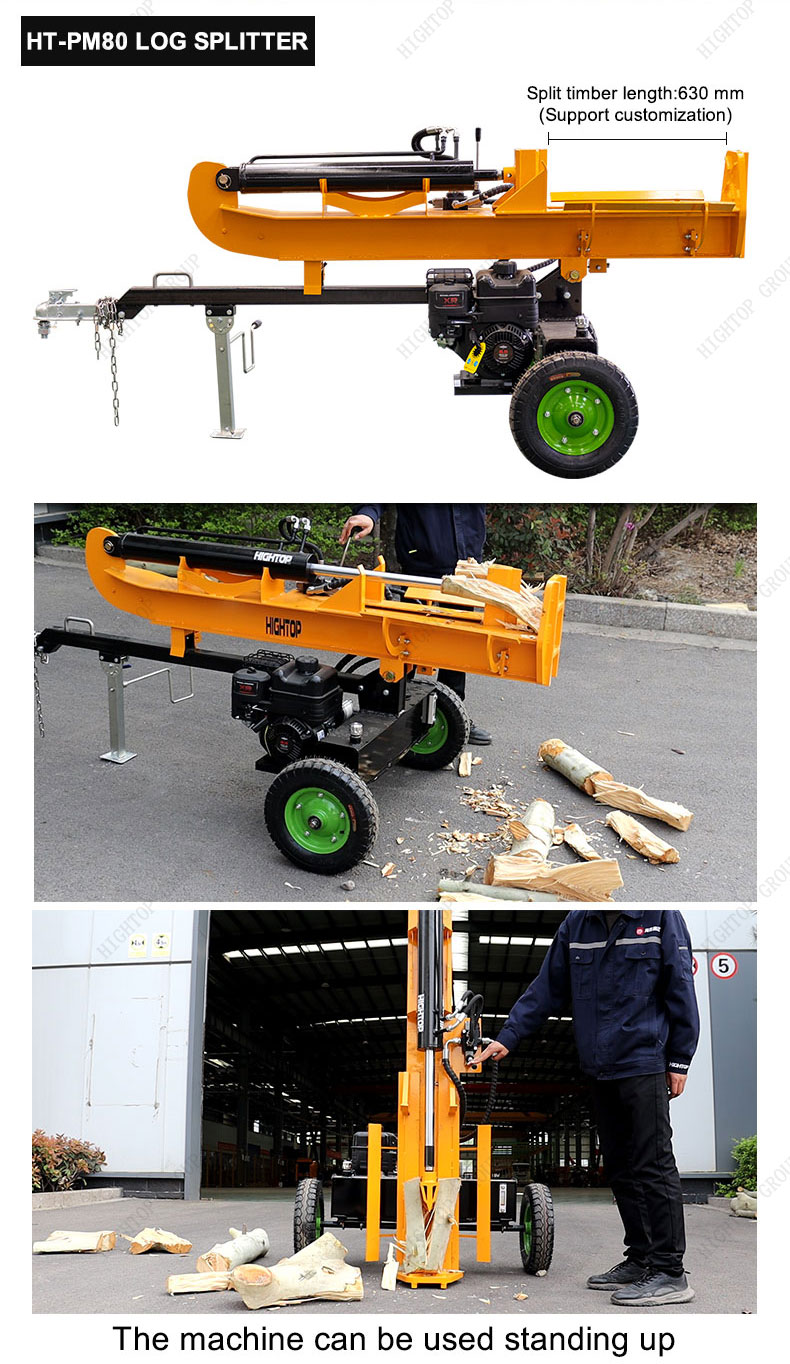

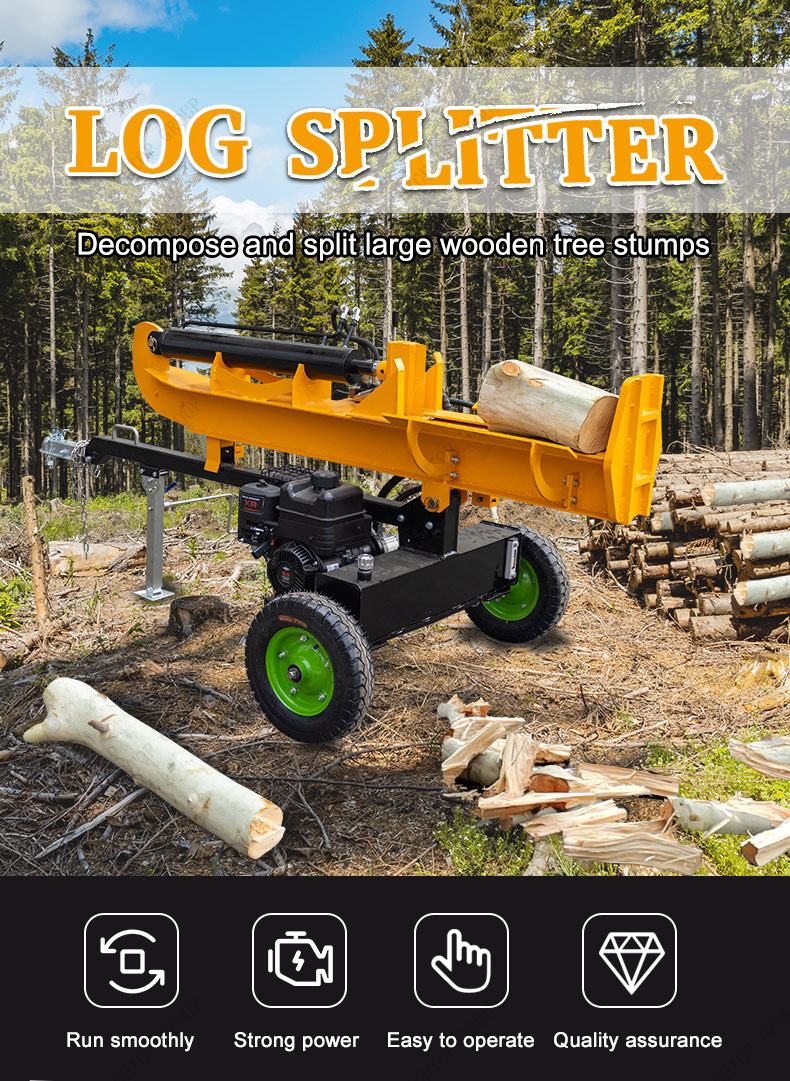

HT-PM80 Log splitter

Split timber length: 630 mm (Support customization)

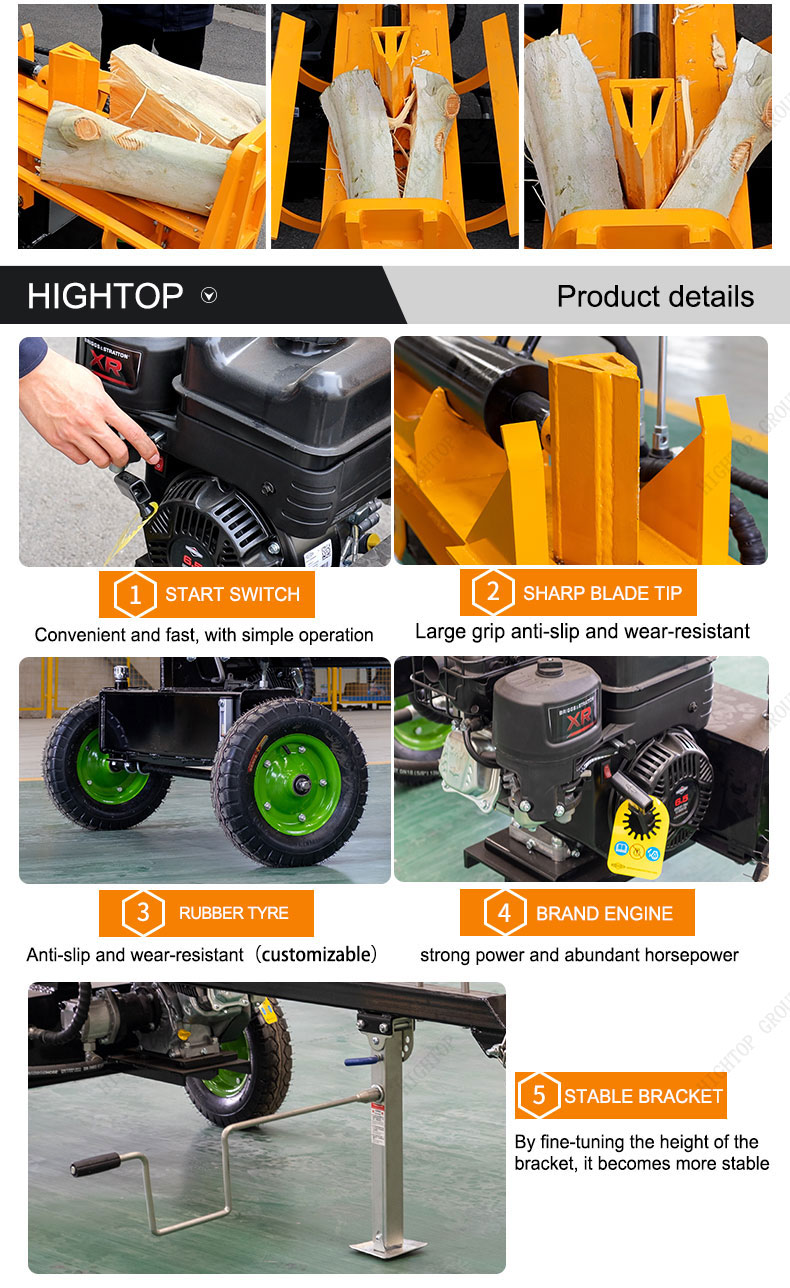

Features:

1.Start Switch

Convenient and fast, with simple operation

2.Sharp bland tip

Large grip anti-slip and wear-resistant

3.Rubber tyre

Anti-slip and wear-resistant(customizable)

4.Brand engine

Strong power and abundant horsepower

5.Stable Bracket

By fine-tuning the height of the bracket, it becomes more stable

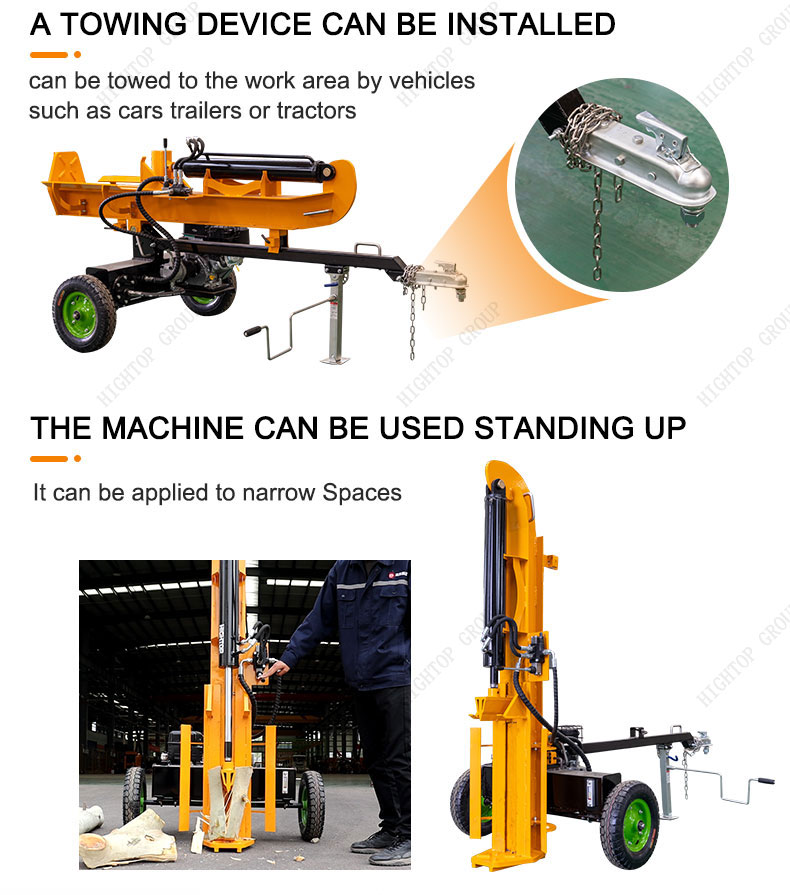

A towing device can be installed，can be towed to the work area by vehicles such as cars trailers or tractors

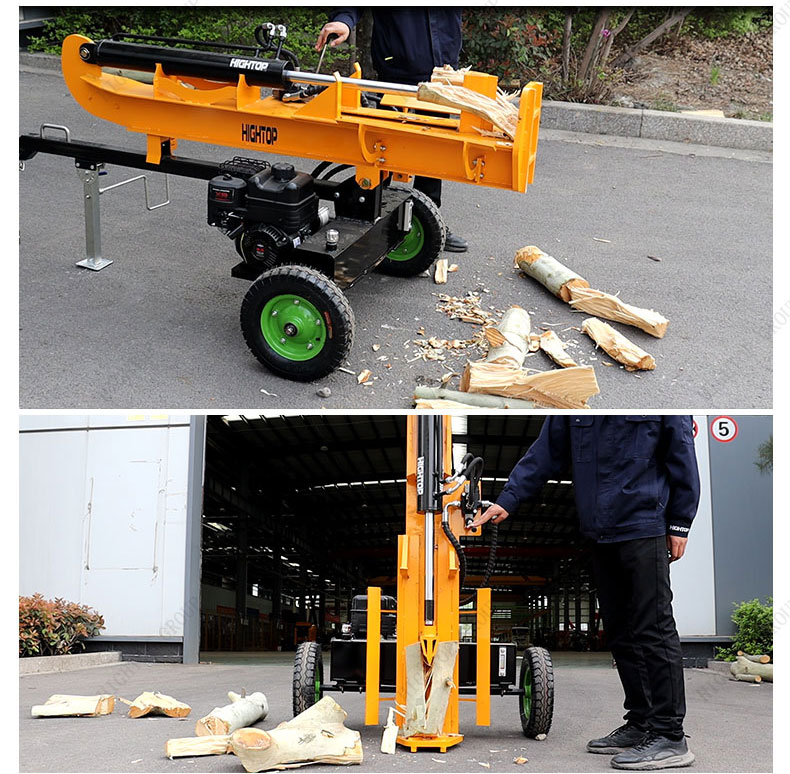

THE MACHINE CAN BE USED STANDING UP

It can be applied to narrow Spaces

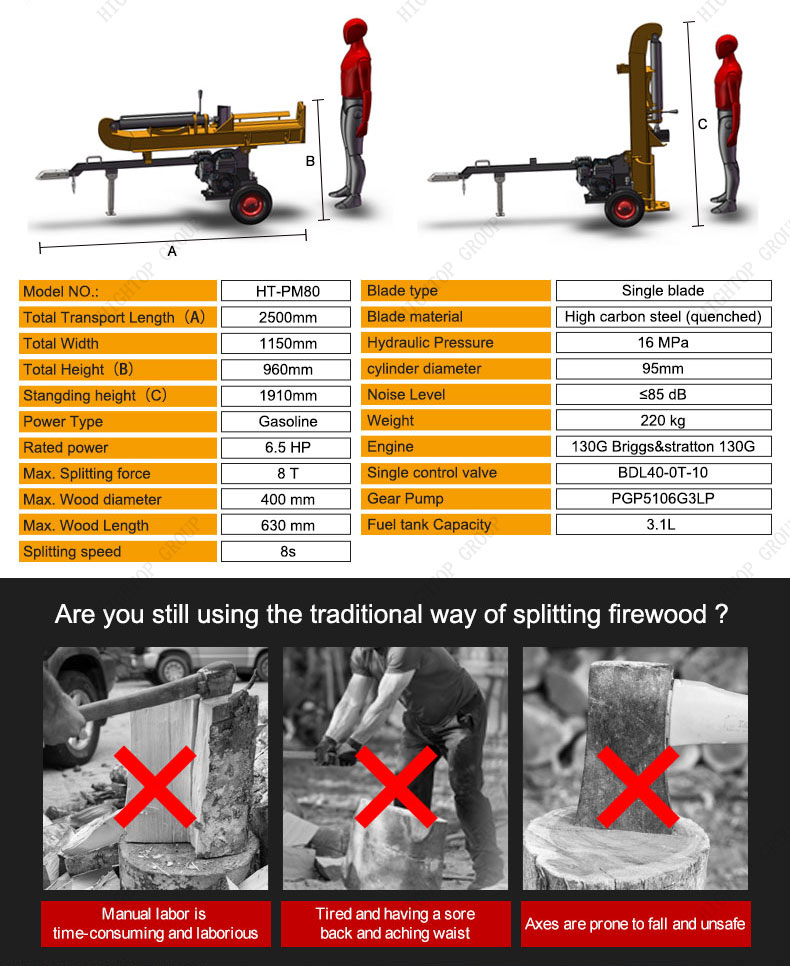

HT-PM80 Log Splitte Parameter

Model NO.: HT-PM80

Blade type: Single blade

Total Transport Length (A): 2500mm

Blade material: High carbon steel (quenched)

Total width: 1150mm

Hydraulic Pressure: 16MPa

Total Height (B): 960mm

Cylinder diameter: 95mm

Standing height (C): 1910mm

Noise Level: ≤85 dB

Power Type: Gasoline

Weight:220 kg

Rated power: 6.5HP

Engine: 130G Briggs & Stratton

Max. Splitting force: 8T

Single control valve: BDL40-0T-10

Max. Wood diameter: 400 mm

Gear Pump: PGP5106G3LP

Max. Wood Length: 630 mm

Fuel tank Capacity: 3.1L

Splitting speed: 8s

HT-PM80 Log Splitte Images
