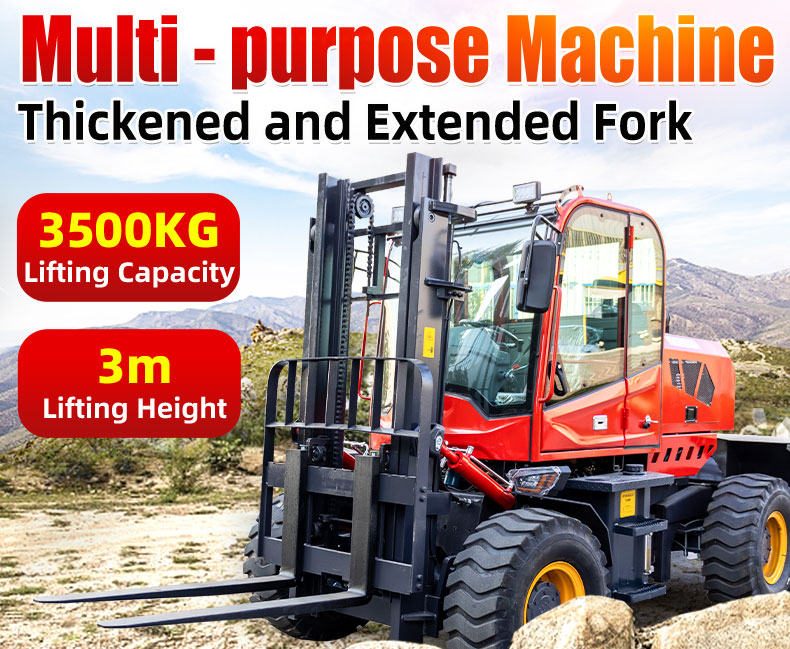

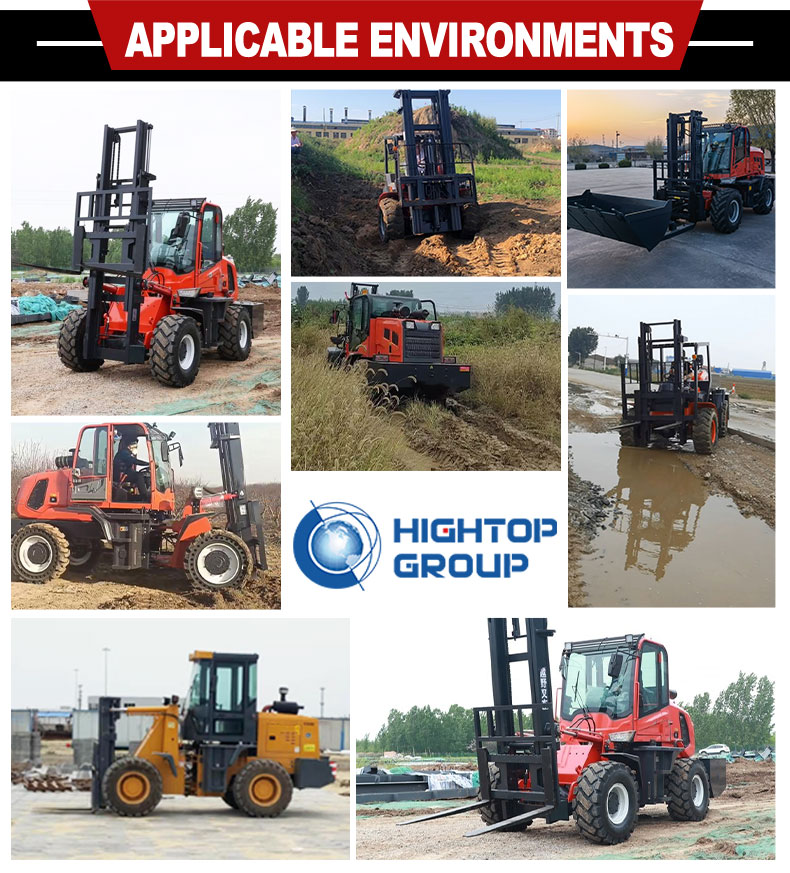

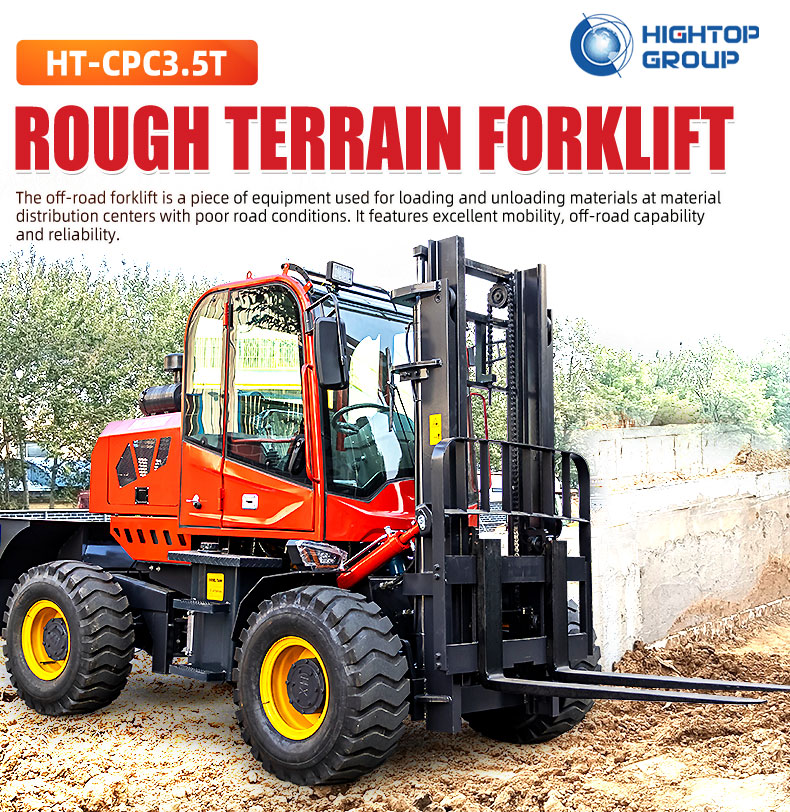

Off-road forklift, also known as field forklift, is the equipment for loading and unloading materials in airports, docks, stations and other material distribution centers with poor road conditions, which has good mobility and off-road reliability. The speed of off-road forklifts is higher than that of ordinary forklifts, and their maneuverability is obvious; The off-road forklift engine has high power, all-wheel drive and off-road tires, so it can drive on hills, mountains, beachheads, sand, snow, ice and muddy roads, and has good off-road performance. There are several types of off-road forklift frames, side beam type and middle articulated type, and the gantry is available in straight gantry type, hydraulic telescopic boom type and connecting rod forward type, etc., which can ensure reliability in operation. Features: The body is wide and can carry irregular and wide cargo. High ground clearance allows you to jump over obstacles on the field. There is a four-wheel drive function to work on muddy fields. Applicable occasions: construction sites, mines, orchards and pastures, industrial and mining enterprises with rough road surfaces.

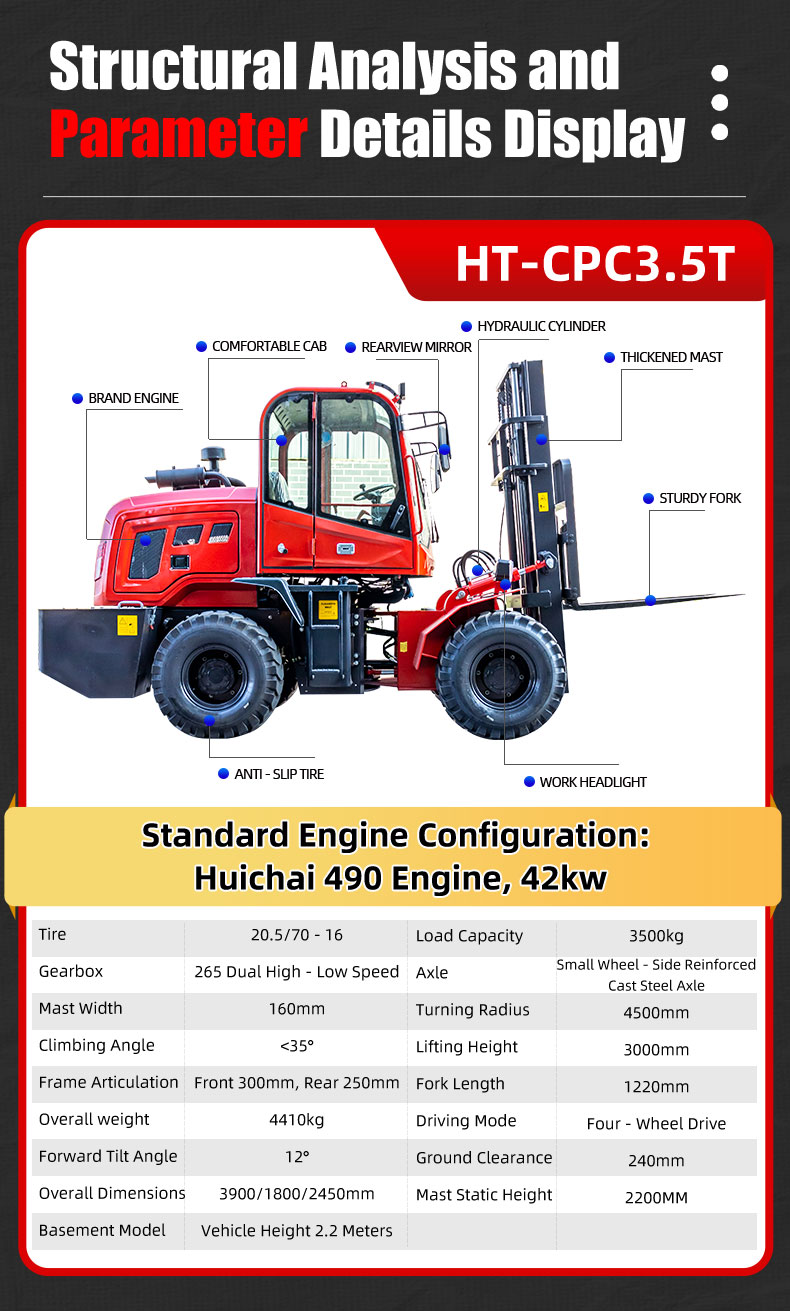

| Standard Engine Configuration:Huichai 490 Engine, 42kw | |||
| Tire | 20.5/70-16 | Load Capacity | 3500kg |
| Gearbox | 265 Dual High - Low Speed | Axle | Small wheel -Side ReinforcedCast Steel Axle |
| Mast width | 160mm | Turning Radius | 4500mm |
| Climbing Angle | <35° | Lifting Height | 3000mm |
| Frame Articulation | Front 300mm, Rear 250mm | Fork Length | 1220mm |
| Overall weight | 4410kg | Driving Mode | Four - wheel Drive |
| Forward Tilt Angle | 1 2° | Ground Clearance | 240mm |
| Overall Dimensions | 3900/1800/2450mm | Mast Static Height | 2200MM |
| Basement Model | Vehicle Height 2.2 Meters | ||
