HIGHTOP MACHINERY
Core Advantages

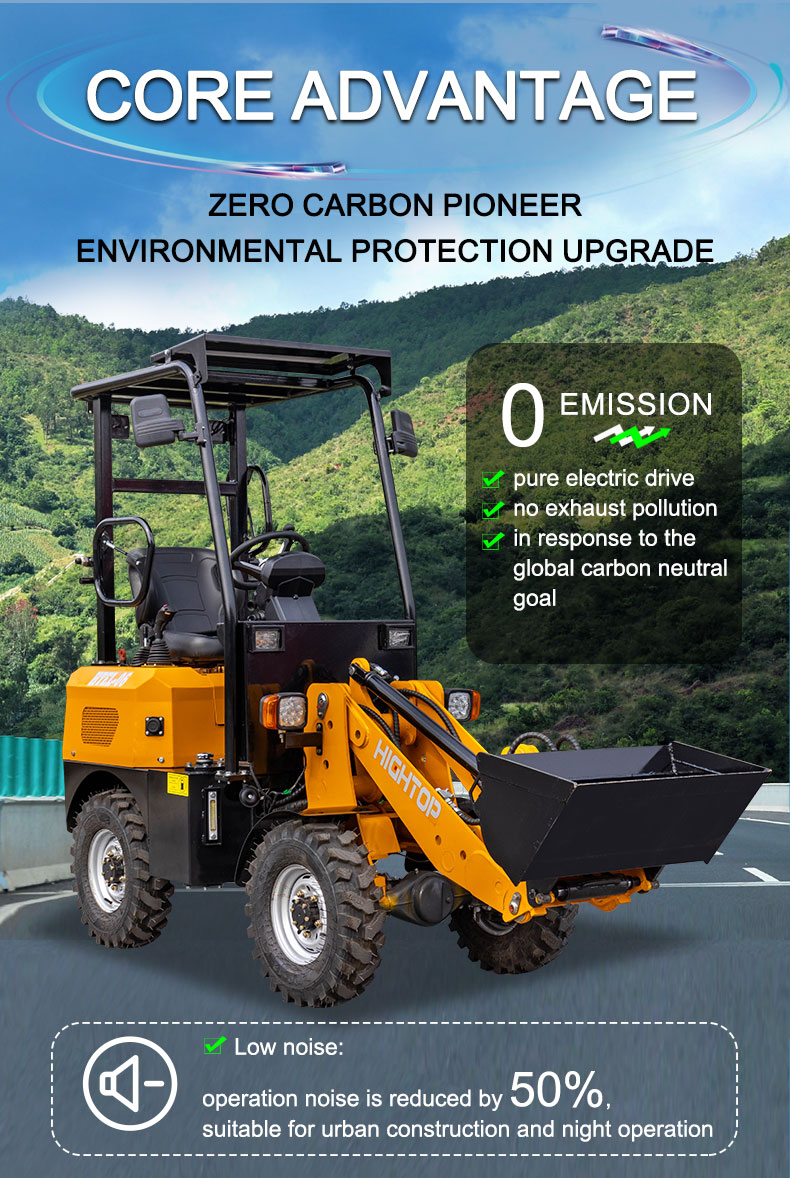

1. Zero Carbon Pioneer, Environmental Protection Upgrade
Zero Emission: Pure electric drive, no exhaust pollution, responding to the global carbon neutral target
Low Noise: 50% lower noise, suitable for urban construction, night operation
Green Certification: ISO 14001 environmental protection system certification
2. Sharp Cost Reduction, Long-term Benefits
Energy Costs Directly Reduced by 70%: Electricity is only 1/3 of the cost of fuel
Maintenance Costs Reduced by Half: Simple motor structure: eliminating engine maintenance, oil replacement, etc. Long Life Battery: adopting maintenance-free lead-acid battery Simple motor structure eliminates the need for engine maintenance and oil replacement.
Long-life battery: maintenance-free lead-acid batteries are used.
3. Surging power and superior performance.
Instantaneous torque output: fast start, strong hill climbing, and 30% increase in operating efficiency.
Load capacity: rated load of 450kg, which can be used in a variety of scenarios.
Intelligent temperature control system: the battery is automatically dissipated, and it operates steadily in a wide range of temperatures, from -20°C to 50°C.

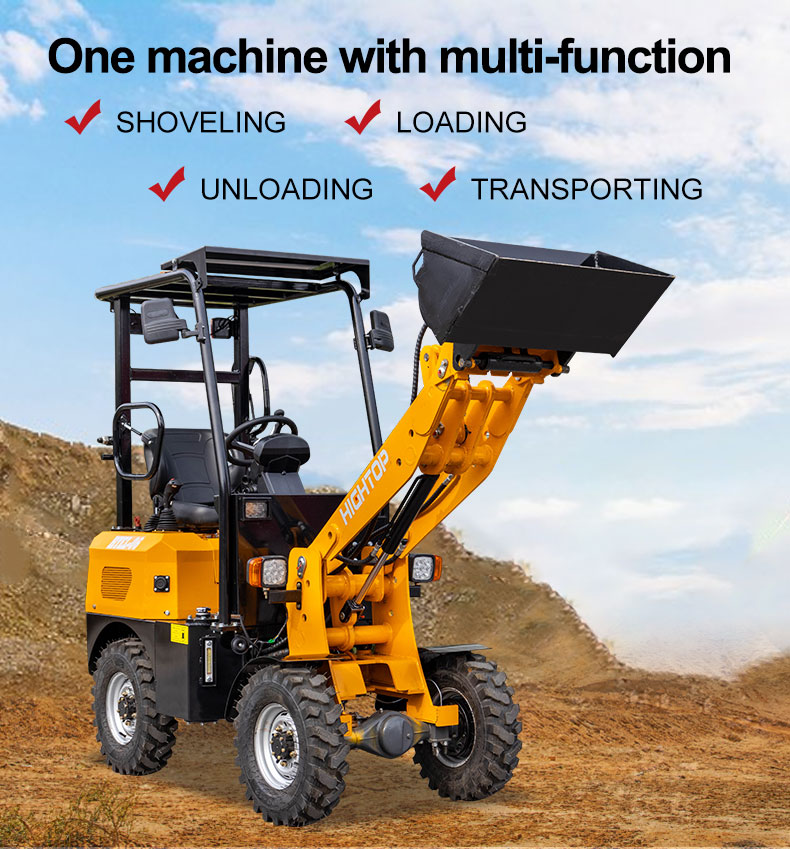

Application Scenarios
Farms & Estates | Construction | Logistics | Factory | Municipal Greening
|
Overall Parameters |
Parameter item |
Unit |
Model/Data |
|
Model No. |
|
HTEL06 |
|
|
Overall Weight |
KG |
1320 |
|
|
Loading capacity(including accessory weight) |
KG |
450 |
|
|
Bucket Capacity |
m³ |
0.15 |
|
|
Fuel type |
|
Battery Pack |
|
|
Low-speed gear maximum speed |
Km/h |
10 |
|
|
Maximum speed in high gear |
Km/h |
13 |
|
|
Minimum turning radius |
mm |
2876 |
|
|
Wheels qantity |
F/R |
2/2 |
|
|
Battery Pack |
Battery model |
|
6-EVF-150A |
|
Battery type |
|
Lead-acid battery |
|
|
Battery quantity |
|
5 |
|
|
Battery Capacity |
Ah |
150 |
|
|
Rated Voltage |
V |
60 |
|
|
Working time |
h |
6 |
|
|
Charging time |
h |
8 |
|
|
Electrical system voltage |
V |
12 |
|
|
Power system |
Pump motor power |
W |
3000 |
|
Pump displacement |
ml/r |
16 |
|
|
RPM |
|
Low-speed650r/min, High-speed 1800 r/min |
|
|
System pressure |
mpa |
16 |
|
|
Steering system |
Steering system type |
|
Hydraulic system |
|
System pressure |
mpa |
16 |
|
|
Walking system |
Power supply type |
|
AC Control |
|
Voltage |
V |
60 |
|
|
Motor quantity |
|
2 |
|
|
Walking motor Power |
W |
2500*2 |
|
|
Tyre size |
|
6.00-12 |
|
|
Braking system |
Work brake |
|
Drum oil pressure braking |
