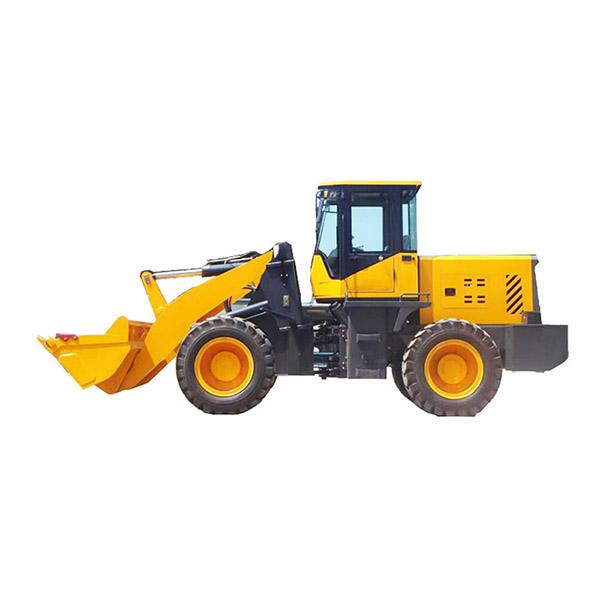

HT920 Wheel Loader

Model:HT920

PERFORMANCE PARAMETERS

bucket capacity(m³)

0.43

bucket width(mm)

1300

operating weight(kg)

≤2400

Rated load(kg)

≤800

Max Climb Capability(°）

35

Minimum turning radius of bucket during loading

4500

MAIN DIMENSIONS AND WEIGHT PARAMETERS

Overall length (with(mm)

≤4380

Maximum width(mm)

1300

Maximum height(mm)

2200

Maximum dumpling(mm)

2500

Corresponding(mm)

700

Minimum ground clearance(mm)

240

Overall weight(kg)

≤2200

ENGINE

model

weifang 490

rated power(kw)

42kw

Number of cylinders

4

Bore / stroke(mm)

90*100

BRAKING SYSTEM

Service braking mode

Mechanical single jokstick

Parking brake mode

manual operation,pliers disc

DRIVE AXLE

Type

Tyre Type

Tire size

1000-16

Front tire pressure(Map)

2.6

Rear tire pressure(Map)

2.6

Axle(Main drive andwheel reducer)

Half -axle

REFUELING CAPACITY

fuel tank(L)

35

hydraulic tank(L)

35

Engine(L)

8

gearbox(L)

16

braking system(L)

1
