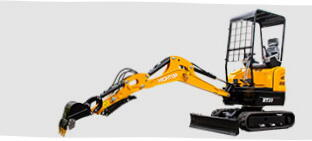

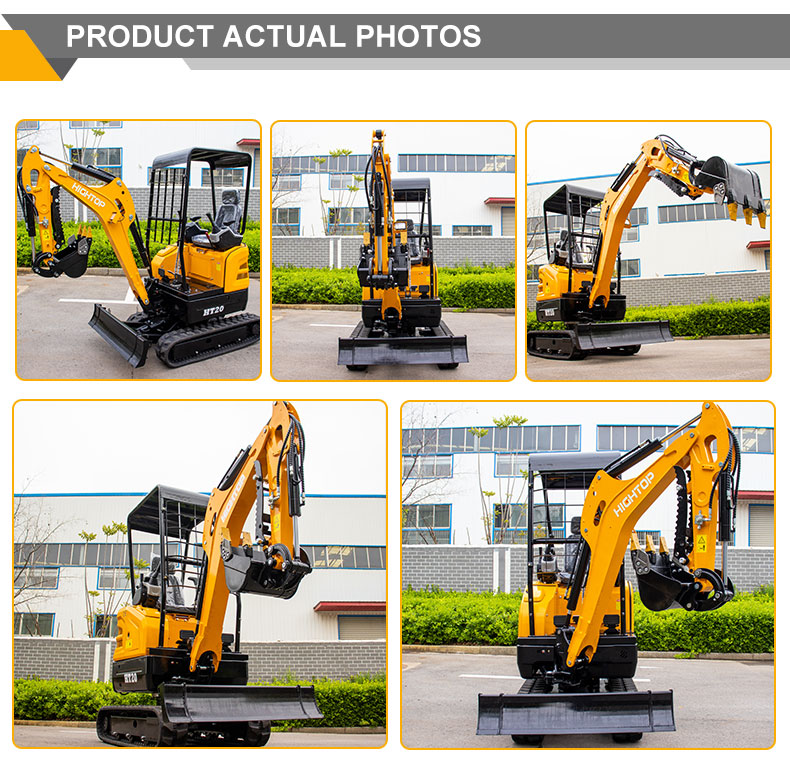

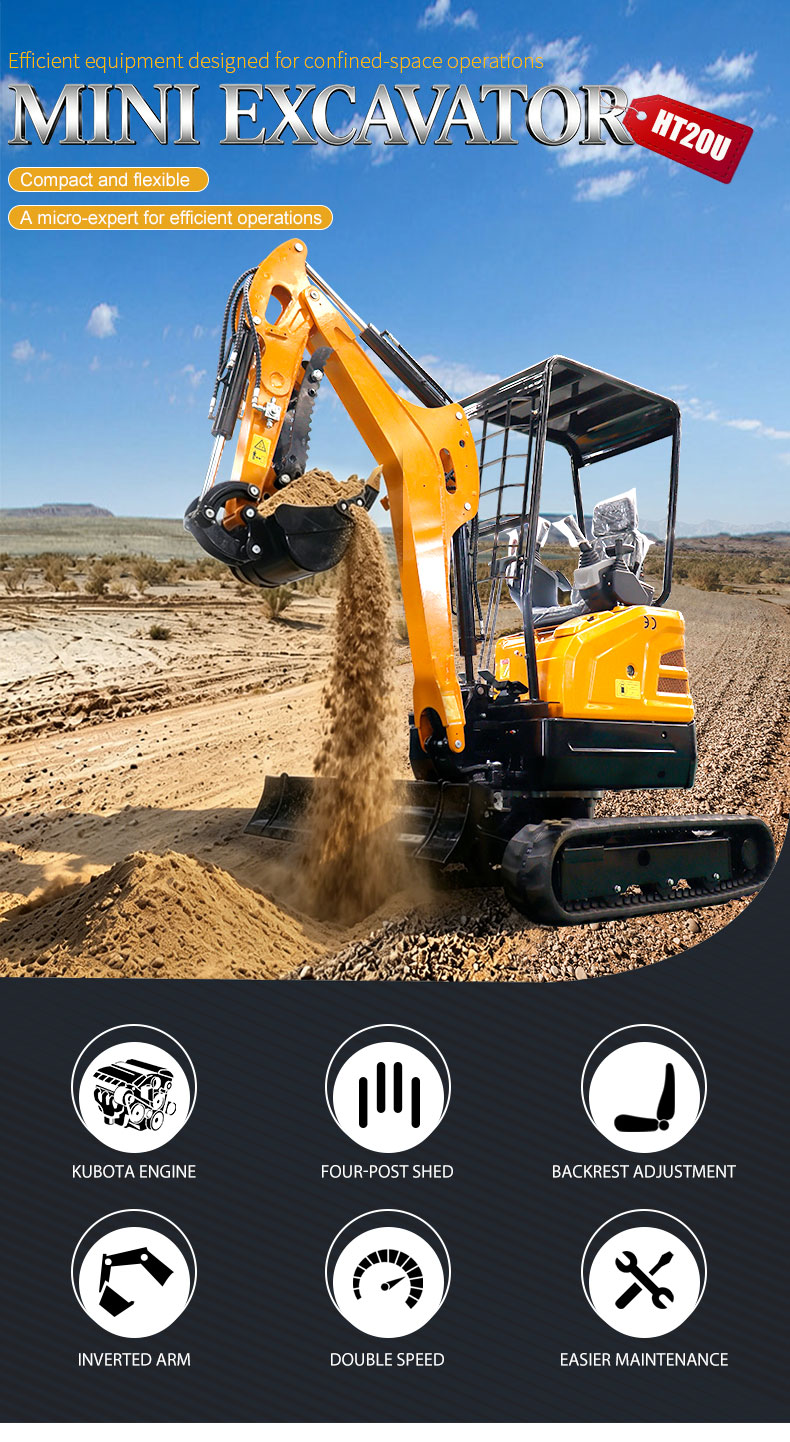

HT20U Mini Excavator

HT20U Mini Excavator Instructions

COMPACT BODY, FLEXIBLE MANEUVERING

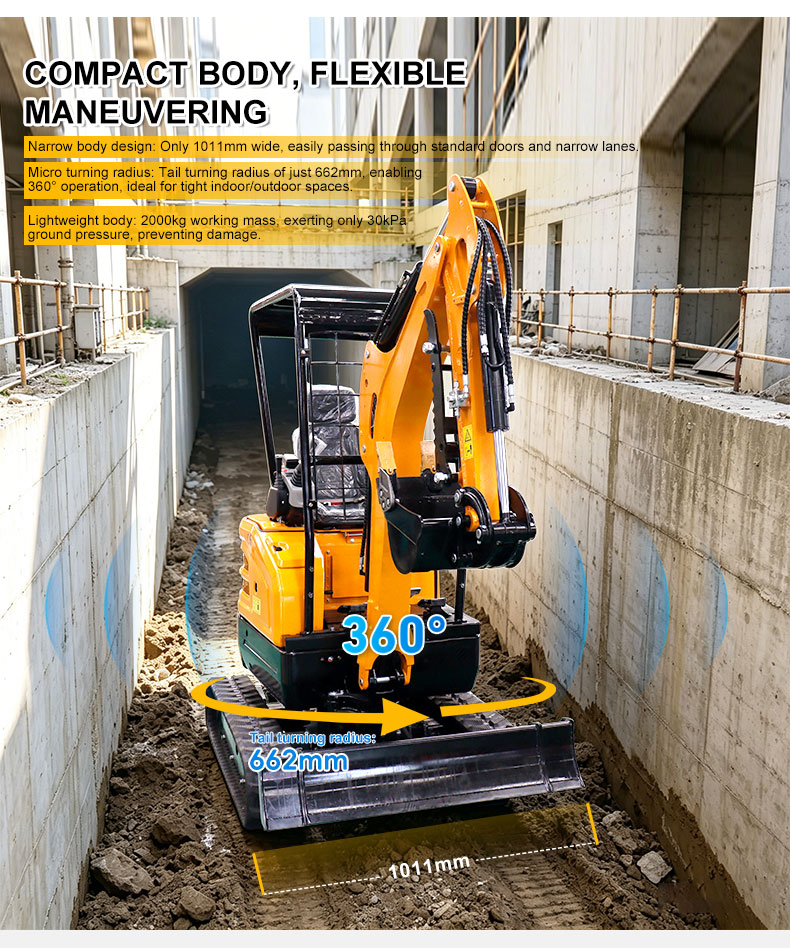

Narrow body design: Only 1011mm wide, easily passing through standard doors and narrow lanes.

Micro turning radius: Tail turning radius of just 662mm, enabling 360° operation, ideal for tight indoor/outdoor spaces.

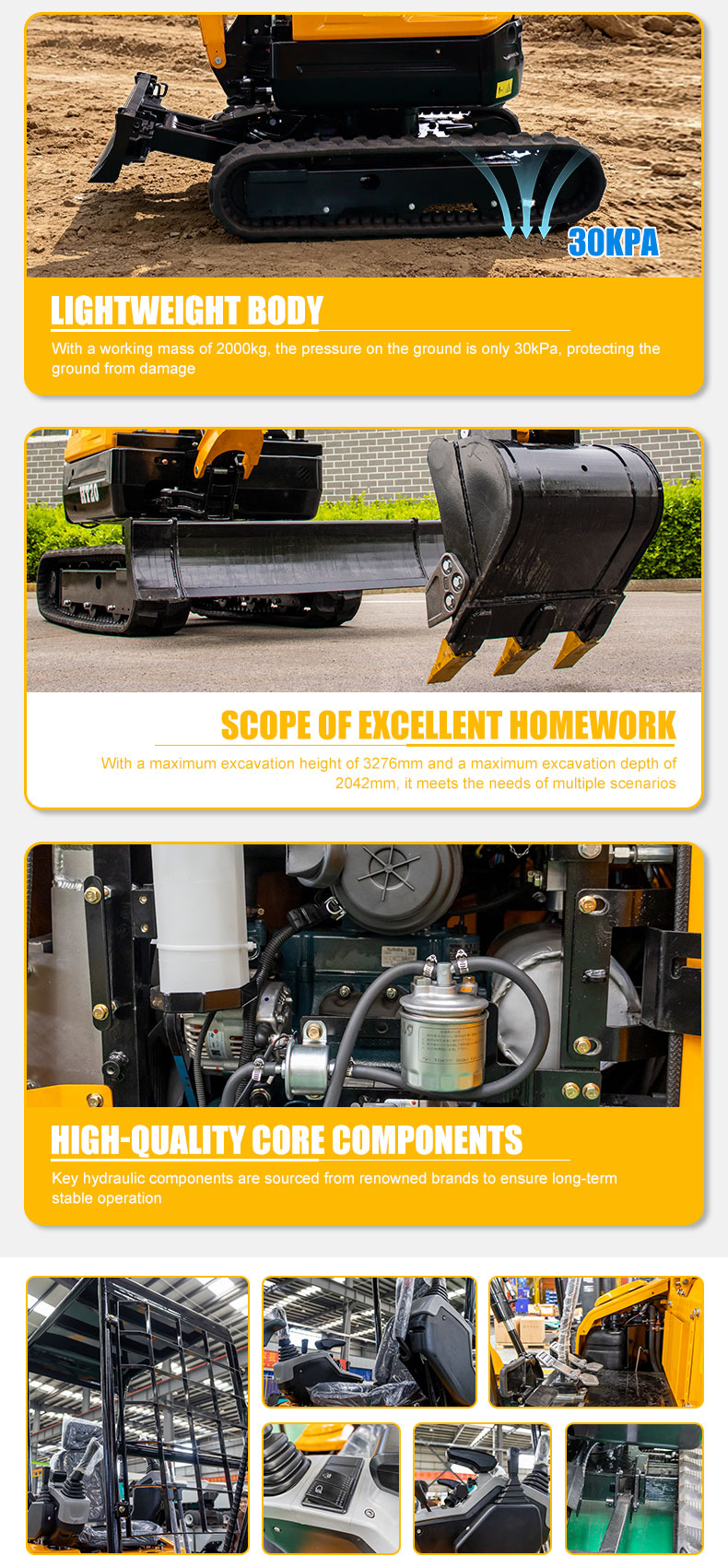

Lightweight body: 2000kg working mass, exerting only 30kPa ground pressure, preventing damage.

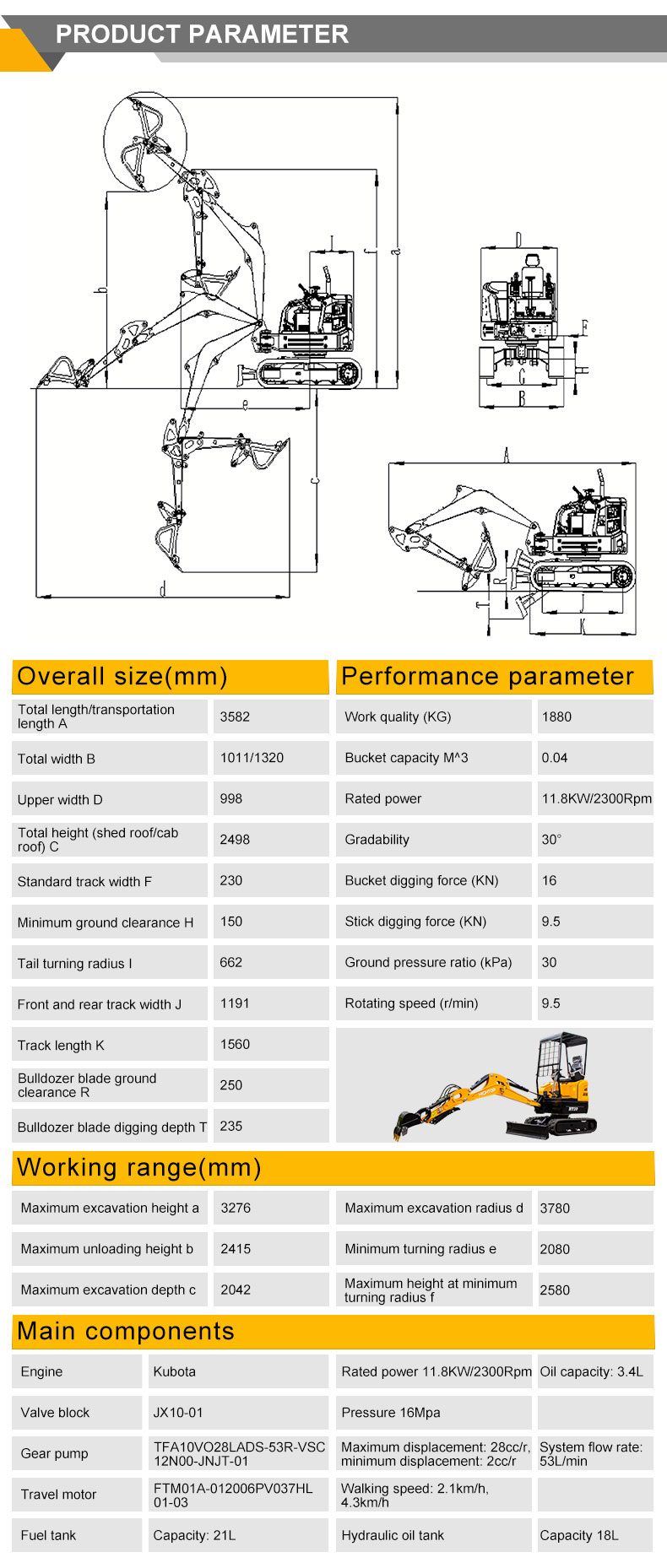

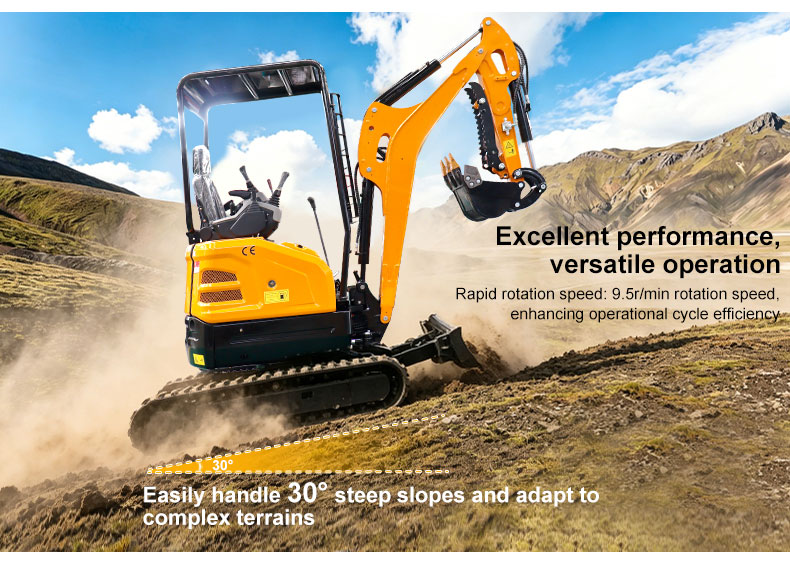

HT20U Mini Excavator Parameter

Overall size(mm)			Performance parameter
Total length/ transportation length A		3582	Work quality (KG)	1880
Total width B		1011/1320	Bucket capacity M^3	0.04
Upper width D		998	Rated power	11.8KW/2300Rpm
Total height(shed roof/ cab roof) C		2498	Gradability	30°
Standard track width F		230	Bucket digging force (KN)	16
Minimum ground clearance H		150	Stick digging force (KN)	9.5
Tail turning radius I		662	Ground pressure ratio (kPa)	30
Front and rear track width J		1191	Rotating speed (r/ min)	9.5
Track length K		1560
Bulldozer blade ground clearance R		250
Bulldozer blade digging depth T		235
Working range(mm)
Maximum excavation height a		3276	Maximum excavation radius d	3780
Maximum unloading height b		2415	Minimum turning radius e	2080
Maximum excavation depth c		2042	Maximum height at minimum turning radius f	2580

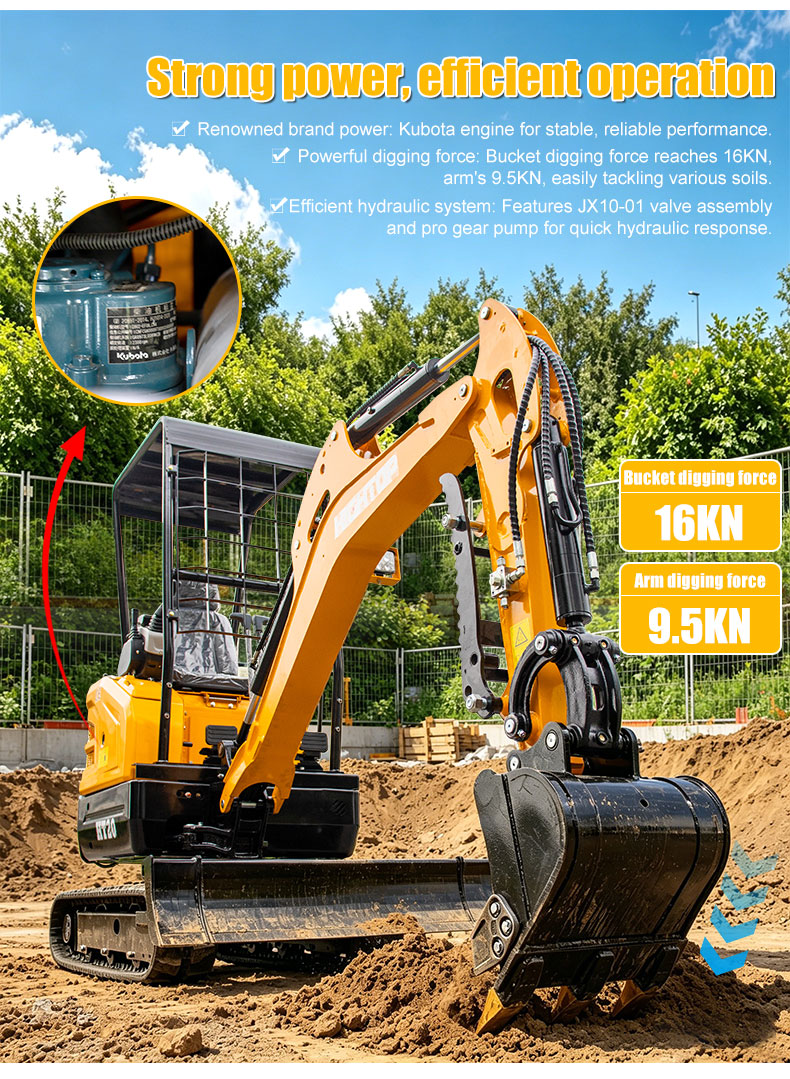

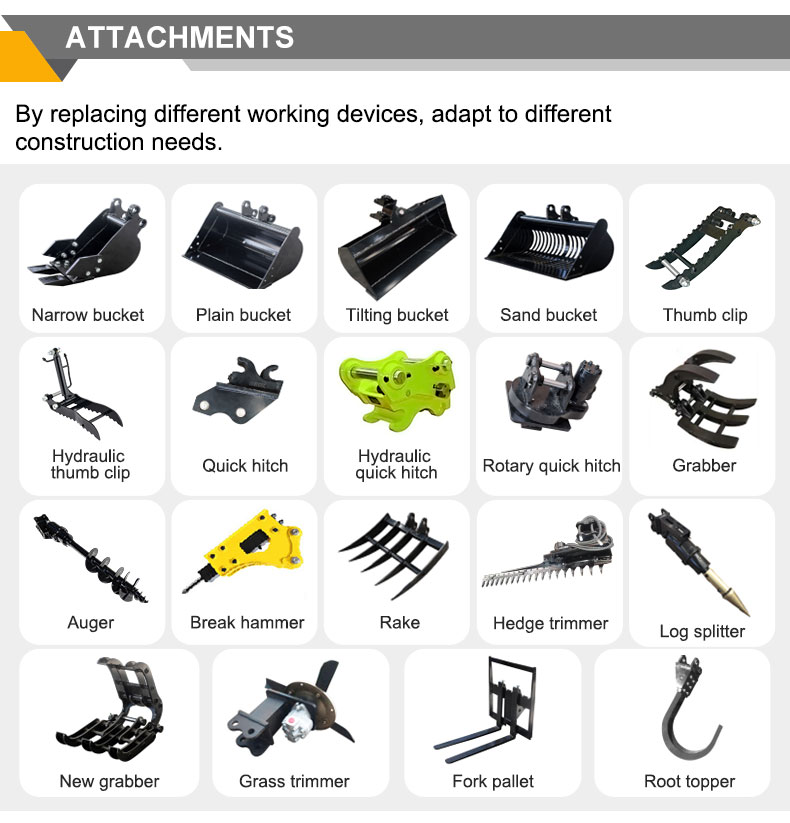

Main components
Engine	Kubota		Rated power 11.8KW/2300Rpm	Oil capacity:3.4L
Valve block	JX10-01		Pressure 16Mpa
Gear pump	TFA10VO28LADS-53R-VSC12N00-JNJT-01		Maximum displacement: 28cc/r,minimum displacement: 2cc/r	System flow rate:53L/ min
Travel motor	FTM01A-012006PV037HL01-03		Walking speed:2.1km/h,4.3km/h
Fuel tank	Capacity:21L		Hydraulic oil tank	Capacity 18L
