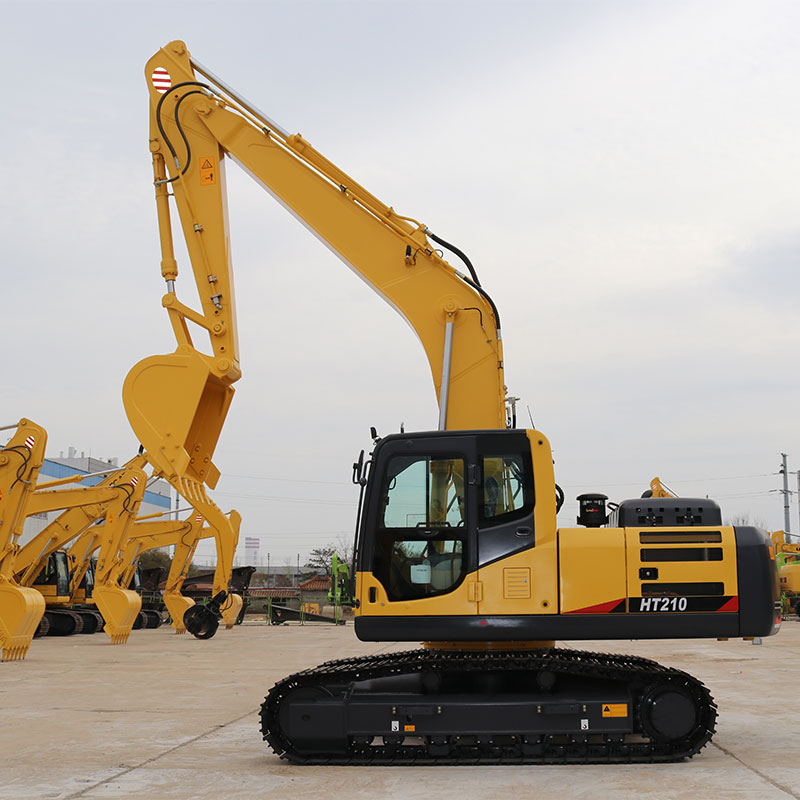

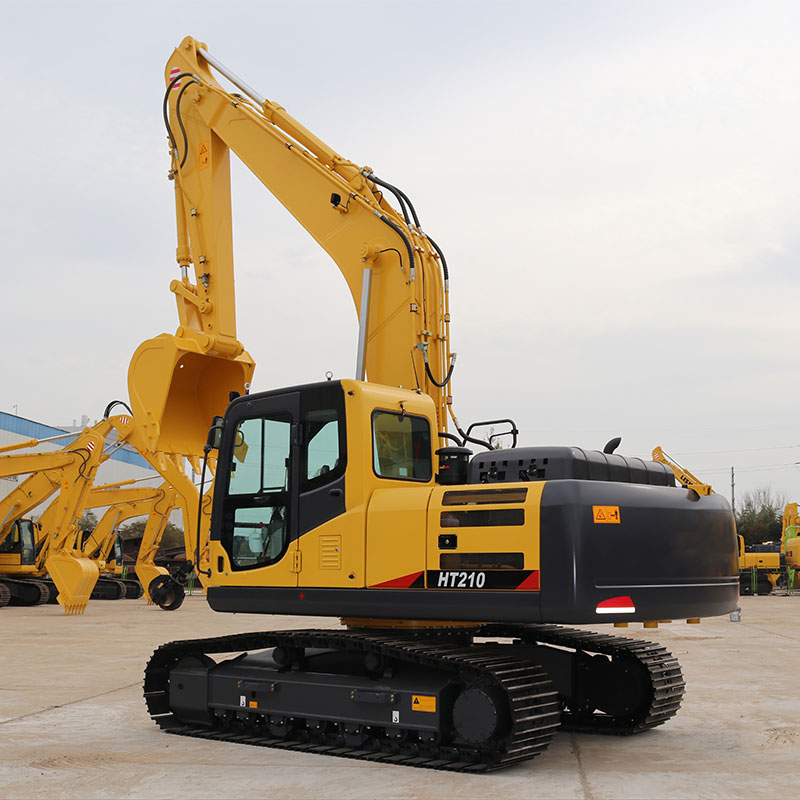

HT210 Large Excavator

Tags： HT210 Large Excavator Large Excavator Excavator Date：2025/10/10

HT210 Large Excavator Instruction

SUPERIOR USE

Heavy Duty Boom and Arm

New Variable Power Control

6BTAA-5.9 (HM5.9)

Reinforced Bucket and Link Bucket Powerful

and Preciser Swing Control

Strong and Stable Bottom Frame

Single Layer Cooling System

Minimize Shock and Vibration Through Mounting cab system

COMFORTABLE OPERATION

· New Front Side Air Conditioning System

· Smooth Travel Pedal and Footrest

· Improved Smart Display

· Lightweight Control Panels

· Wide Cab with Excellent Visibility

· Highly Sensitive Joystick and Easy Entry

· Wide, Comfortable Operating Space

MAINTENANCE AND EASY MAINTENANCE

· Easy to maintain engine components

· Centralized electrical control unit and easy to change air cleaner assembly

· Side cover with left and right swing open type

· Large tool box for extra storage

· High efficiency hydraulic pump

· Hi-MATE (remote system management)

Model:HT210
Total Weight	21t	Track grounding length	3445mm
Bucket capacity	0.9-1.2m³	Track length	4250mm
Engine model	Cummins 6BTAA5.9	Rail guage	2180mm
Rated power	133kw/2000r/min	Track width	2780mm
Fuel tank volume	350L	Track shoe width	600mm
Walking speed	5.2/3.5km/h	Turntable width	2700mm
Swing speed	11.7r/min	Distance from the center of rotation to the rear end	2720mm
Climbing ability	35°	Track tooth thickness	26mm
Bucket digging force	138kn	Counterweight height	2045mm
Arm digging force	99kn	Grounding length during transportation	4940mm
Ground pressure	44kpa	Arm length	2900mm
Traction	174kn	Boom length	5700mm
Hydraulic pump model	K3V112DT	Max.excavation height	8630mm
Max.flow rate	223*2L/min	Max.unloading height	6180mm
Work pressure	34.3/37.3mpa	Max.digging depth	5501mm
Hydraulic tank volume	246L	Max.vertical digging depth	4940mm
Total length	9390mm	Max.digging depth when digging out 2.5m level	5287mm
Overall width	2780mm	Max.digging distance	8305mm
Total height (boom top)	3040mm	Max.excavation distance on the ground	8180mm
Overall height(top of cab)	3114mm	Min.turning radius	2495mm
Counterweight ground clearance	1065mm	Max.height at minimum turning radius	6430mm
Minimum ground clearance	468mm	Tail turning radius	2720mm
