HIGHTOP MACHINERY

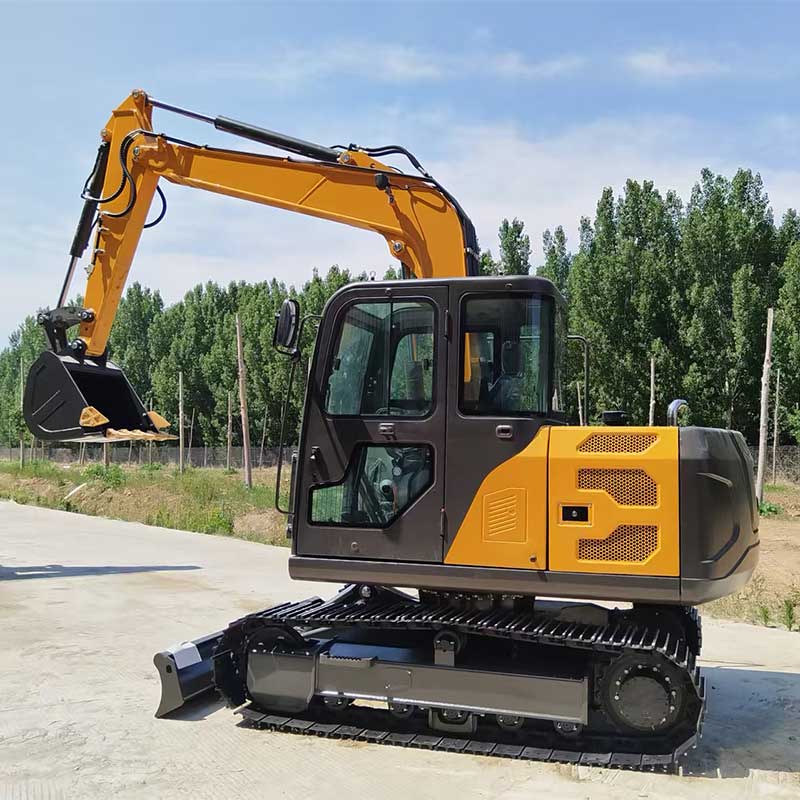

The 7 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in vari-ous construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
|
TECHNOLOGY SPECIFICATION |
||
|
Machine Specfication |
Operating Weight |
6600 kg |
|
Bucket Capacity |
0.28 m3 |
|
|
Transport length |
5940 mm |
|
|
Transport width |
2024 mm |
|
|
Transport height |
2827 mm |
|
|
Tail swing Radius |
1833 mm |
|
|
Track Width |
2400 mm |
|
|
Min. ground clearance |
217 mm |
|
|
Performance Parameter |
Engine power |
48/2300 kw/rpm |
|
Max. engine torque |
245/1610 N.m/rpm |
|
|
Hydraulic pump |
Shimadzu-SGPIA23F2H9 |
|
|
Pilot pressure |
3 Mpa |
|
|
Working pressure |
20 Mpa |
|
|
Rated flow |
105.8 Umin |
|
|
Hydraulic tank capacity |
103 L |
|
|
fuel capacity |
125 L |
|
|
Rotating speed |
10rpm |
|
|
Max. travelling speed |
30 km/h |
|
|
Digging force of bucket |
46 kIN |
|
|
Max. drawbar pull |
39 kN |
|
|
Gradeability |
59% (30*) |
|
|
Bulldozer blade (WxL) |
2024/440 mm |
|
|
Working Range |
Movable arm length |
3260 mm |
|
Arm length |
1750 mm |
|
|
Max. excavation distance |
6230 mm |
|
|
Max. Digging depth |
3500 mm |
|
|
Max. Digging height |
6300 mm |
|
|
Max.dumping height |
4750 mm |
|
|
Min. turming radius |
2361mm |
|
|
|
|
|
