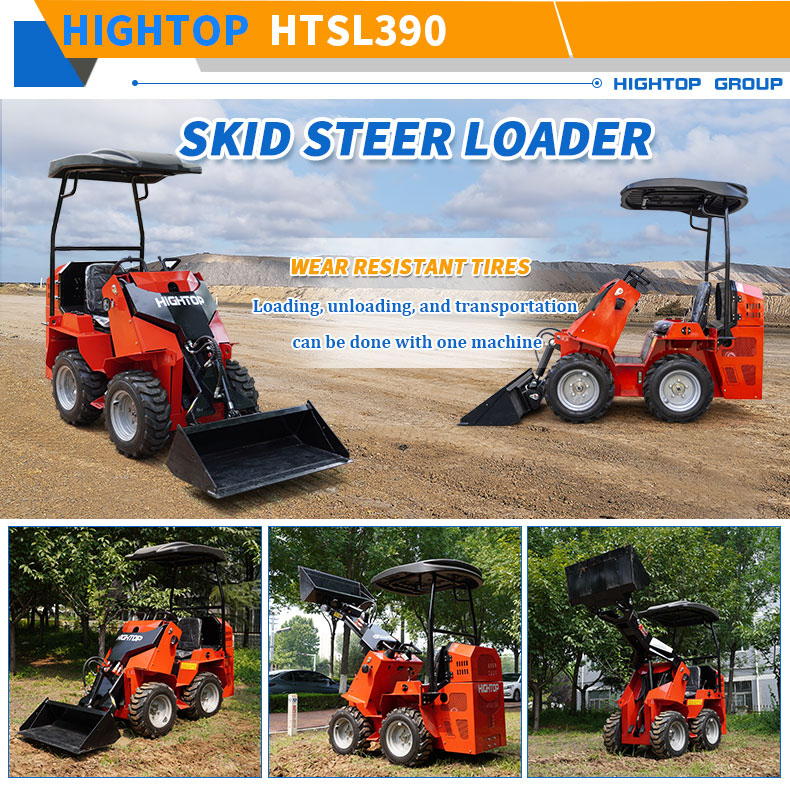

HTSL390 Skid Steer Loader

HTSL390 Skid Steer Loader Instruction

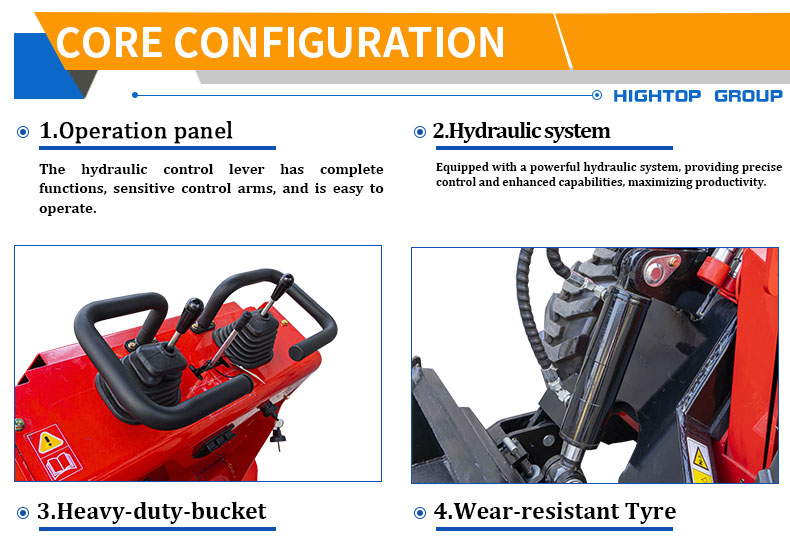

1.Operation panel

The hydraulic controllever hascompletefunctions,sensitive control arms,and is easy tooperate.

2.Hydraulic system

Equipped with a powerful hydraulic system, providing precisecontrol and enhanced capabilities, maximizing productivity.

3. Heavy-duty-bucket

Strong load-bearing capacity makes loading and unloading easy and effortless.

4. Wear-resistant Tyre

Anti-silp wear-resistant steerig fliexable Strong grip

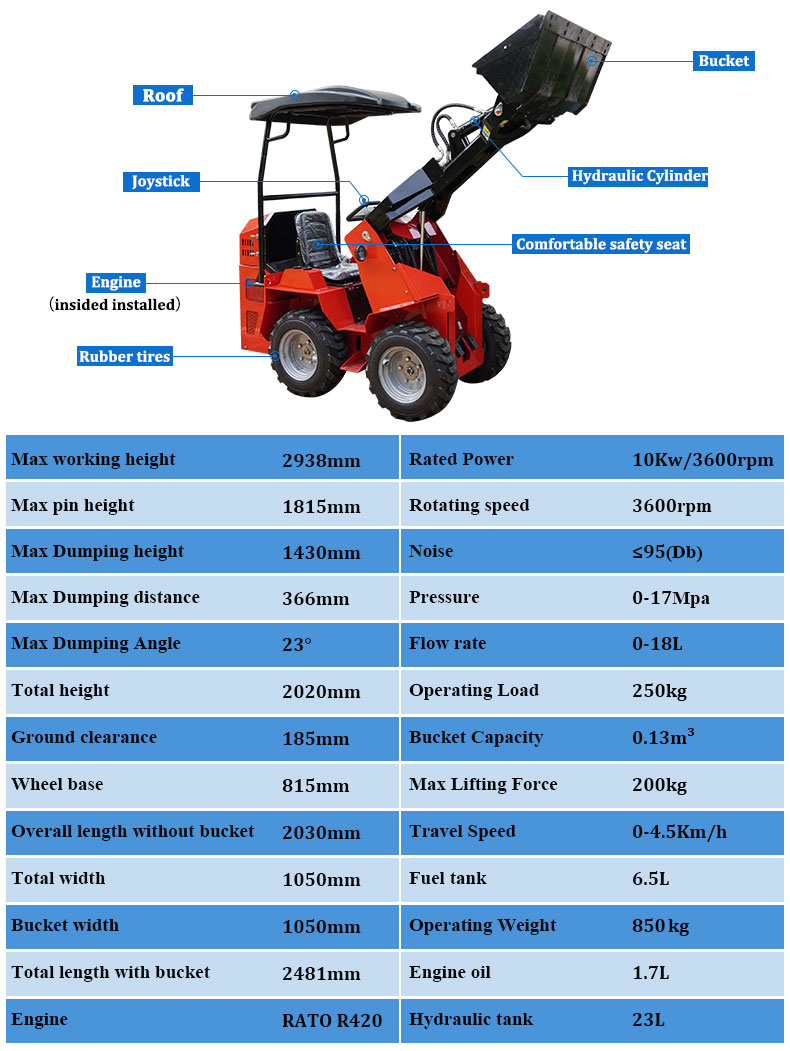

HTSL390 Skid Steer Loader Parameter

Max working height	2398mm
Max pin height	1815 mm
Max Dumping height	1430mm
Max Dumping distance	366mm
Max Dumping Angle	23
Total height	2020mm
Ground clearance	185 mm
Wheel base	815
Overall length without bucket	2030mm
Total width	1050mm
Bucket width	1050mm
Total length with bucket	2481mm
Engine	RATO R420
Rated Power (KW)	10Kw/3600rpm
Rotating speed (rpm)	3600
Noise (Db)	≤95
Hydraulic System
Pressure (Mpa)	0-17
Flow rate	0-18L
Operating Load	250KG
Bucket Capacity	0.13m³
Max Lifting Force	200 Kg
Travel Speed	0-4.5Km/h
Operating Weight	850kg
Oil
Fuel tank	6.5L
Engine oil	1.7L
Hydraulic tank	23L

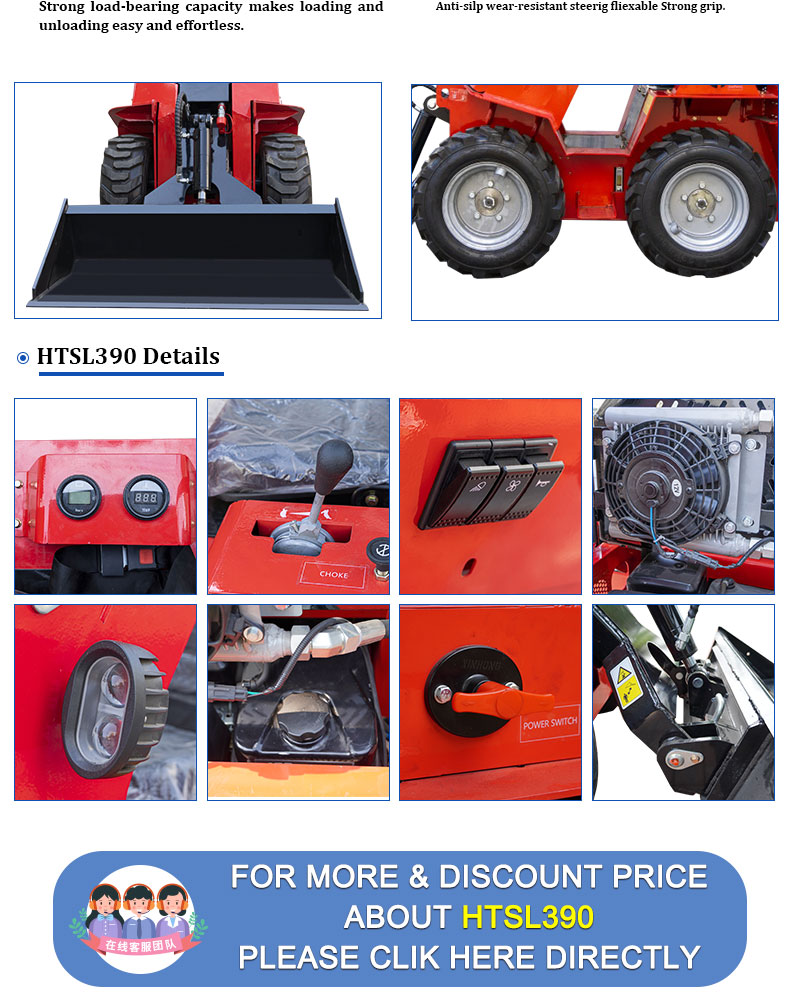

HTSL390 Skid Steer Loader Details
