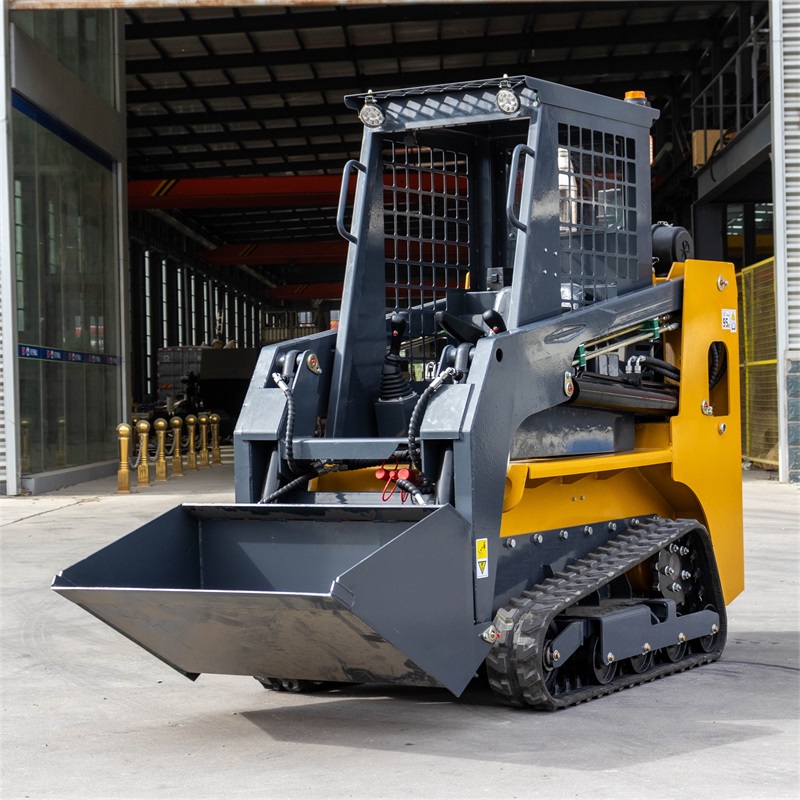

HTS25 Crawler/Wheel Skid Steer Loader

Tags： HTS25 Crawler Skid Steer Loader Wheel Skid Steer Loader Skid Steer Loader Date：2025/01/14

HTS25 Crawler/Wheel Skid Steer Loader Instruction

Perkins engine 403D-11 18.4kw engine, Italian Lufthansa hydraulic pump, American Danfoss motor, imported gear pump, domestic oil cylinder, Italian multi-way valve, open cab, hydraulic control, 560*155 solid tires, 40″ shovel Bucket, liquid brake, Italian fast quick-change joint (through Lynx plane)

HTS25 Crawler/Wheel Skid Steer Loader Parameter

Model:HTS25
Operating load	380 kg	Overall operating height	3400 mm
Rated flux	50 L/min	Height to top of cab	1813mm
Tire(track)model	6.5-10	Dumping height	2000mm
Rated power	Kubota Engine 25hp/2800rpm	Bucket width	920 mm
Fuel tank capacity	28L	Dumping reach	441mm
Machine Weight	1300 kg	Tread width	785mm
Bucket capacity	0.2 m3
