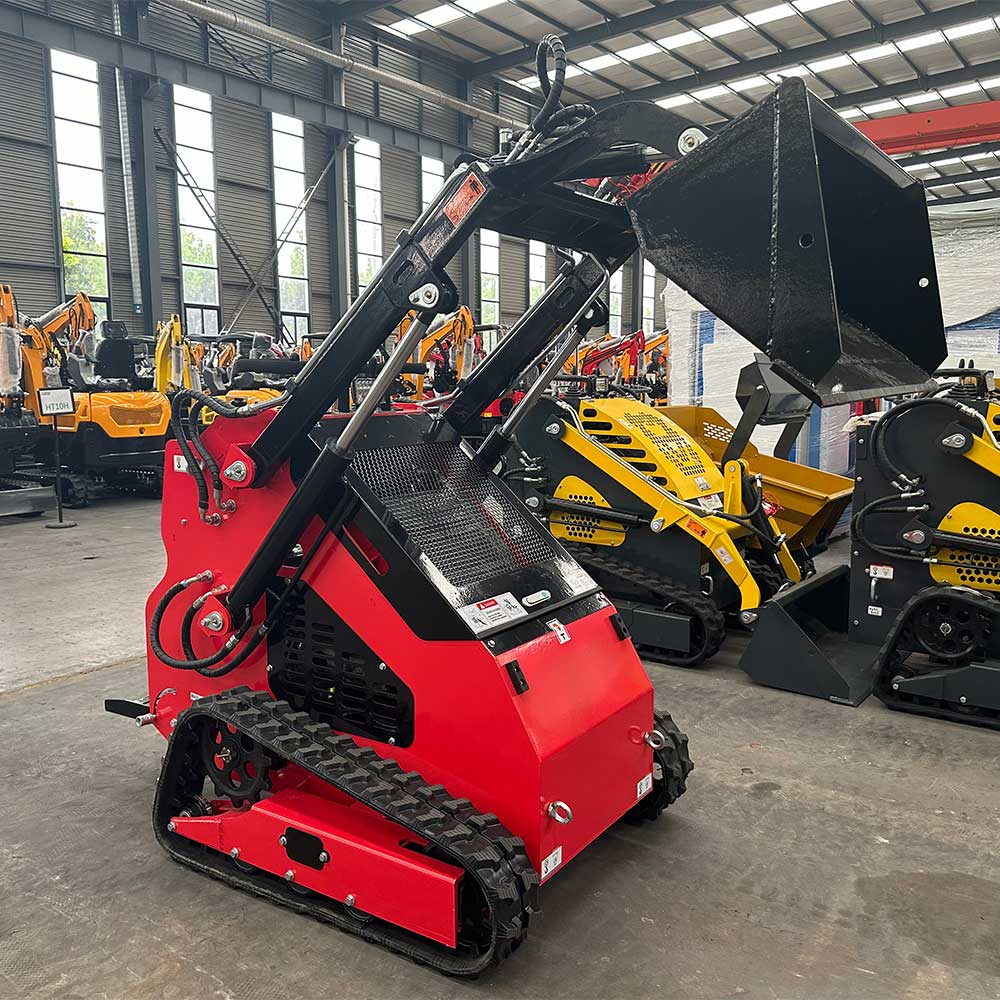

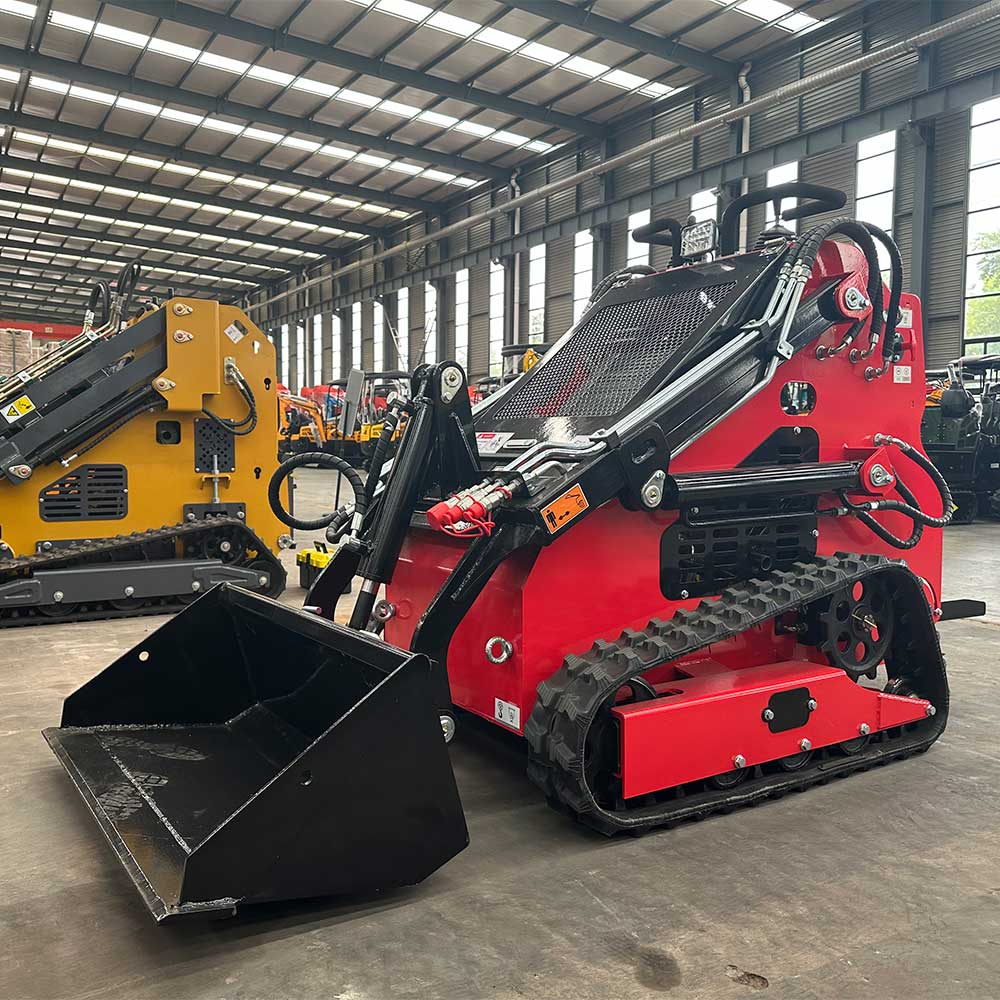

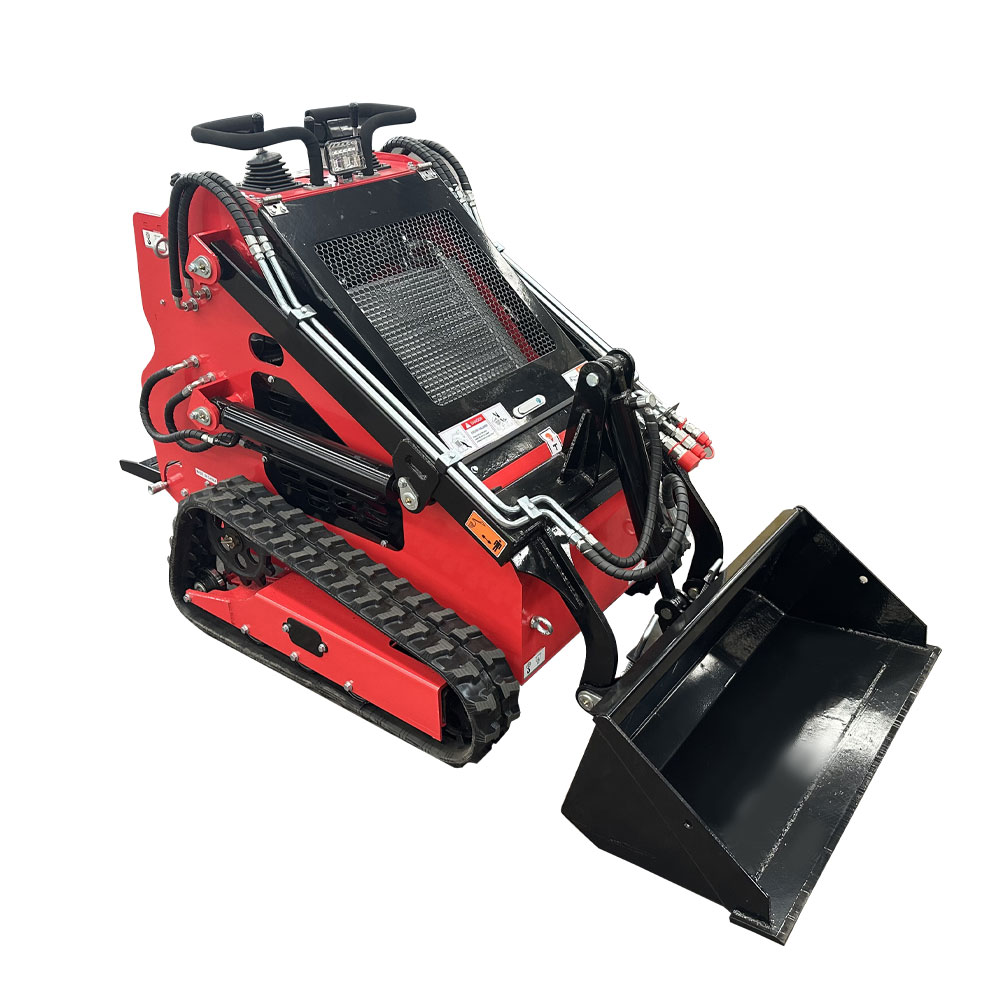

HT360W Skid Steer Loader

performances

Rated loading capacity

kg

220

Bucket volume

m³

0.09

Maximum lifting force

kg

375

Working speed

km/h

0-6.5

Rated pressure

Mpa

17

Lifting time

S

4.5

Lowering time

S

3.5

Tipping time

S

1.5

Working weight

kg

720

Engine

Engine name

RATO Engine

Model

R420D

Type of engine

Gasoline Single Cylinder

Output power

8.5KW(15hp）/3600rpm

Fuel consumption

L/h

≤4.1

Starting method

electric start

quantitative

Fuel tank

L

6.7

Engine oil

L

1.1

Hydraulic oil tank

L

25

Overall Dimension

Length x Width x Height

mm

2400X1030X1330

Packing size (wooden box)

Length x Width x Height

mm

1700x1050x1350
