HIGHTOP MACHINERY

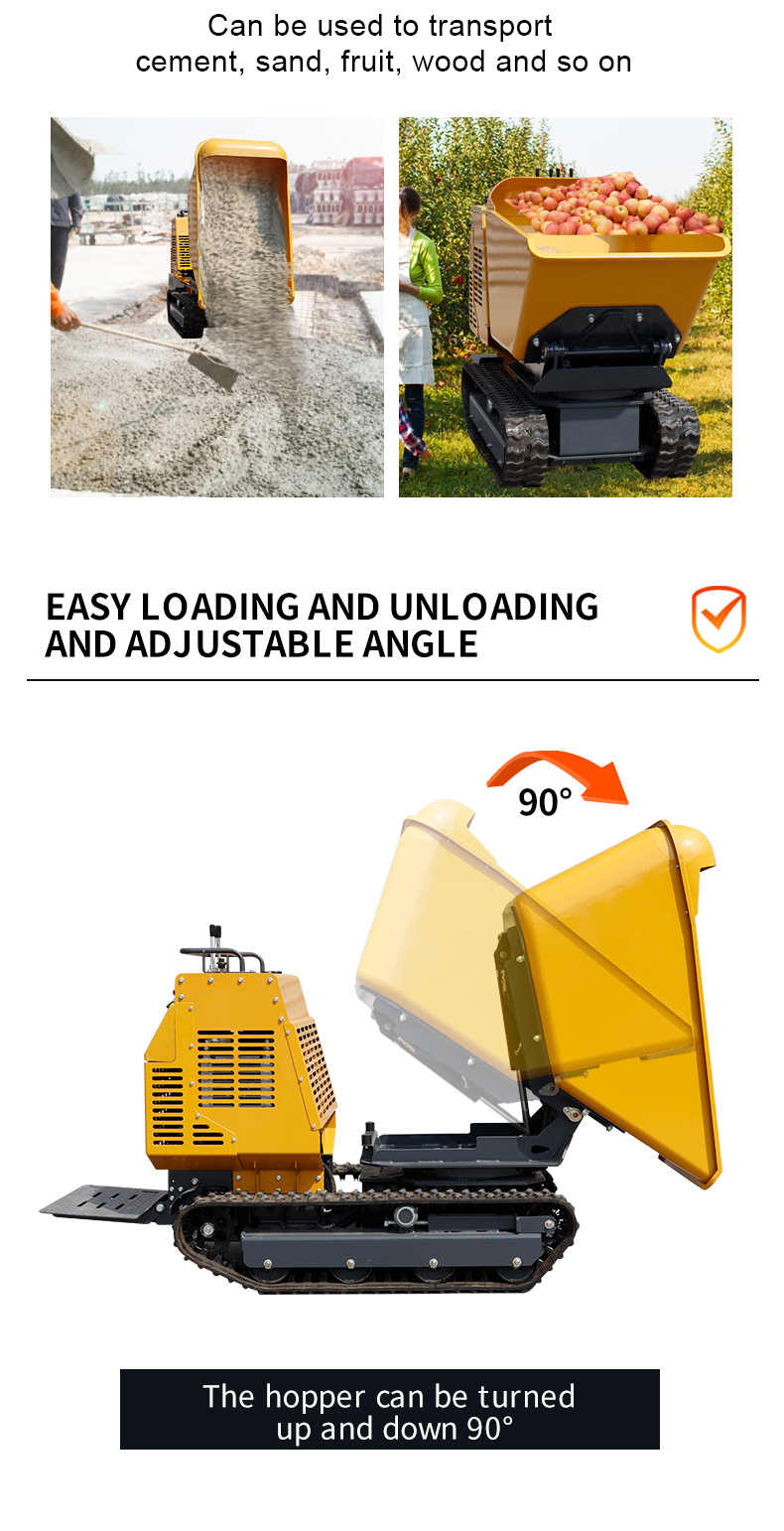

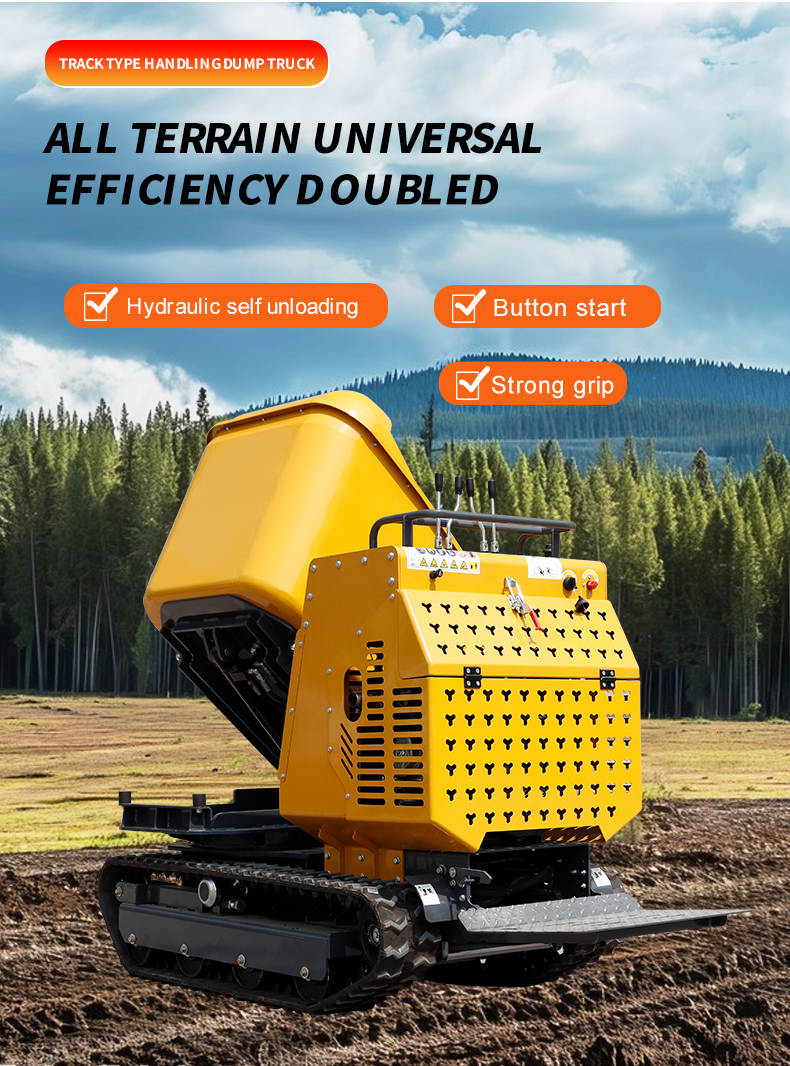

Can be used to transport cement, sand, fruit, wood and so on.
The hopper can be turnedup and down 90°

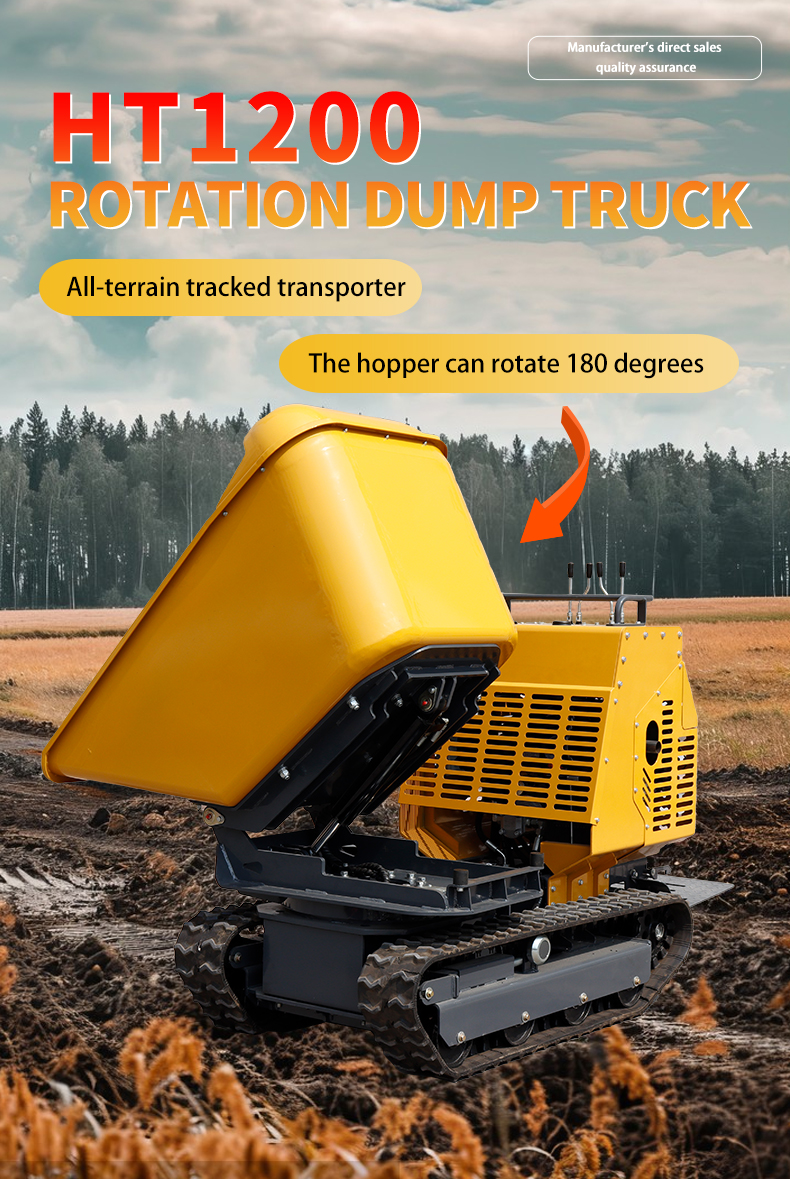

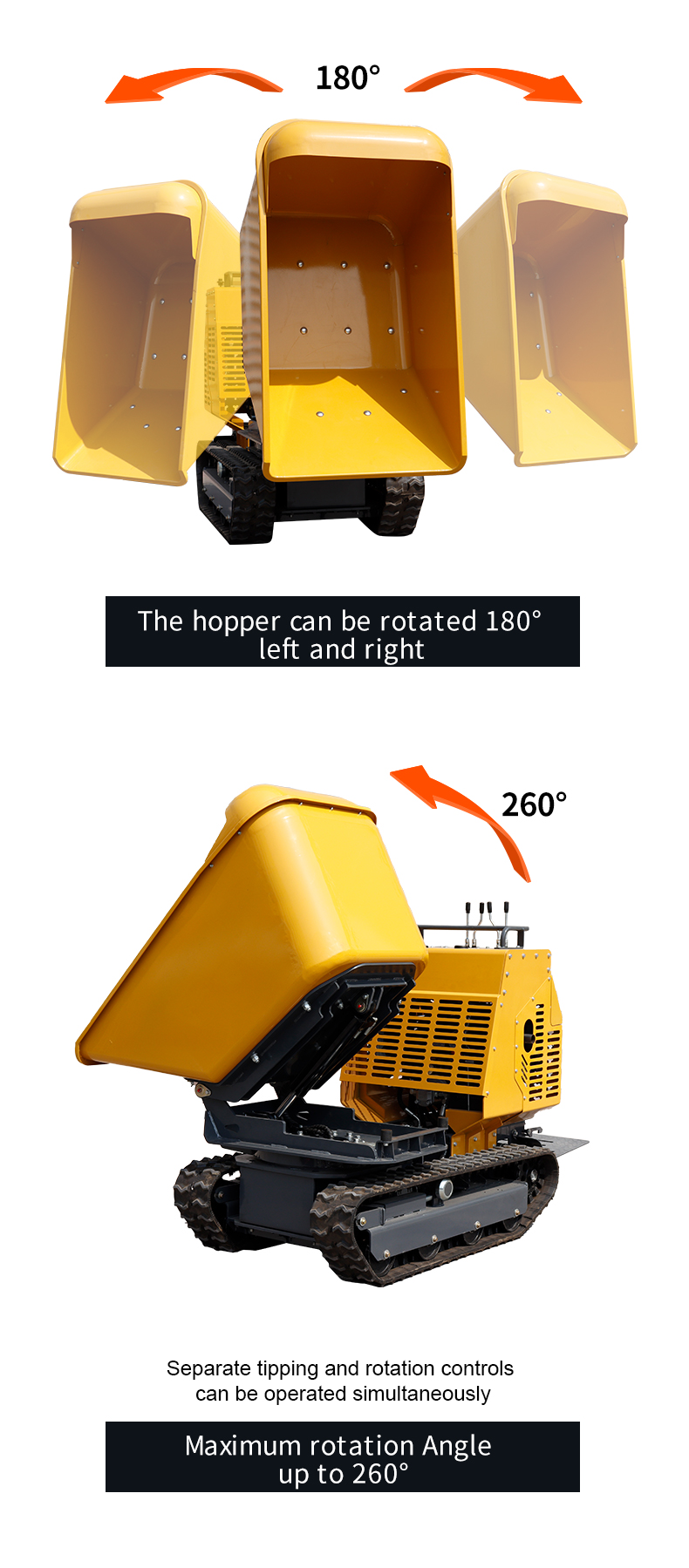

The hopper can be rotated 180°left and right
Separate tipping and rotation controls can be operated simultaneously
Maximum rotation Angleup to 260°

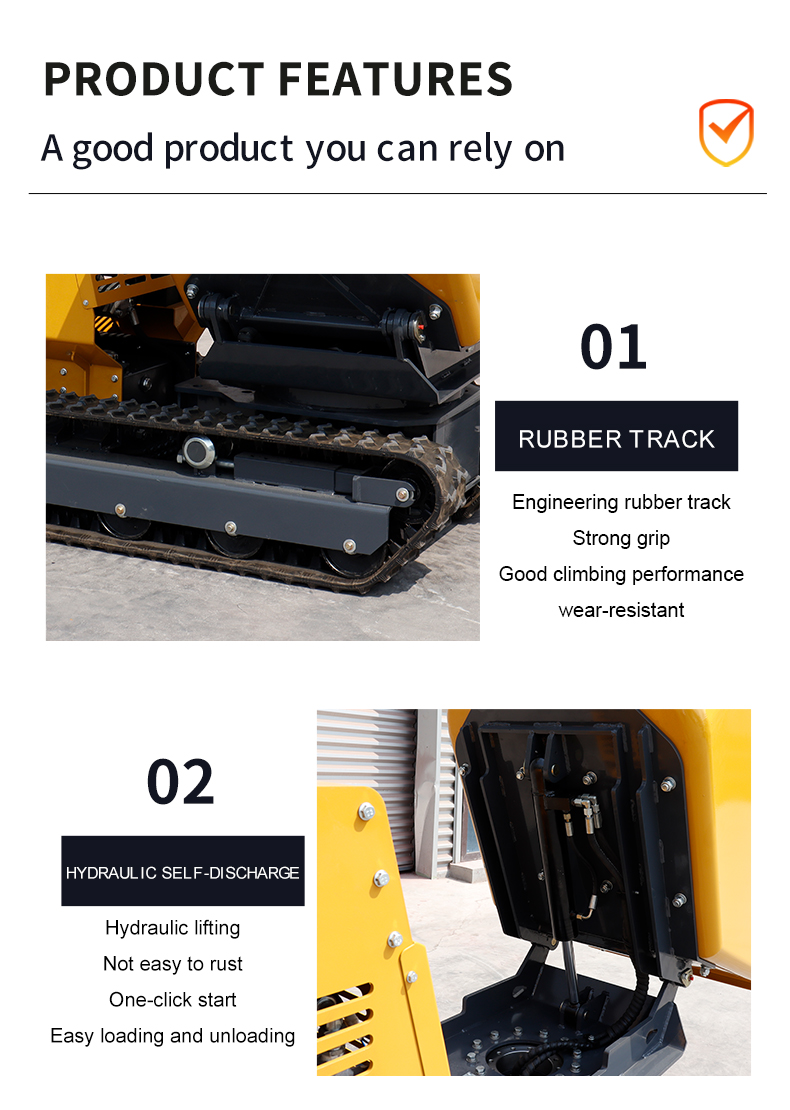

product features
1.rubber track
Engineering rubber track Strong grip.Good climbing performance wear-resistant
2.hydraulic self-discharce
Hydraulic lifting,Not easy to rust,One-click start,Easy loading and unloading

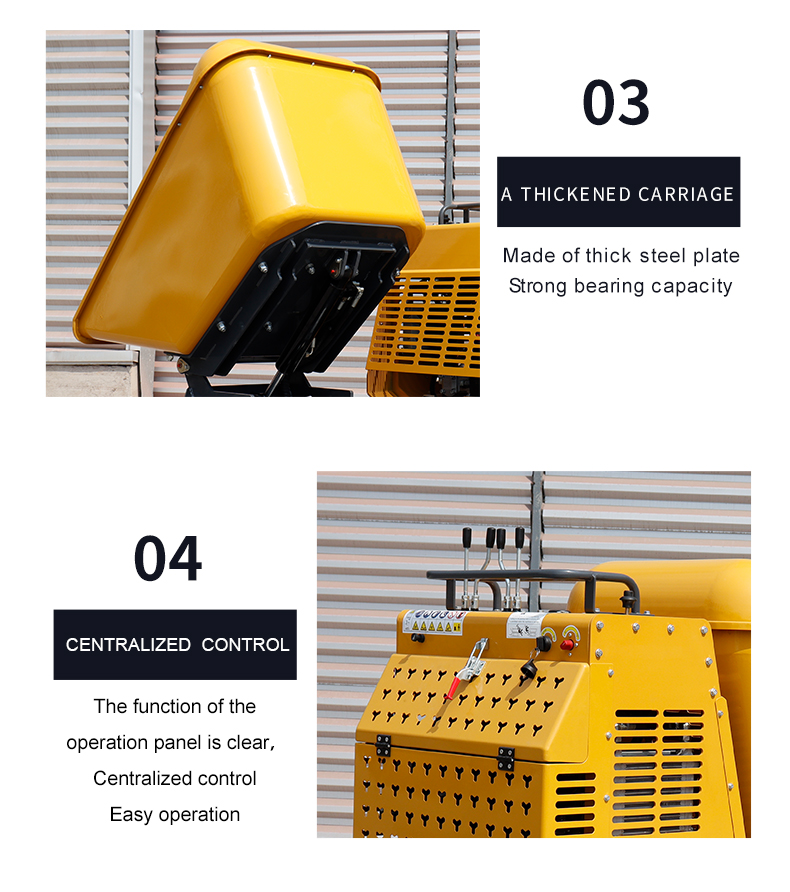

3.a thickened carriage
Made of thick steel plate.Strong bearing capacity
4.centralized control
The function of the operation panel is clear.
Centralized control Easy operation
|

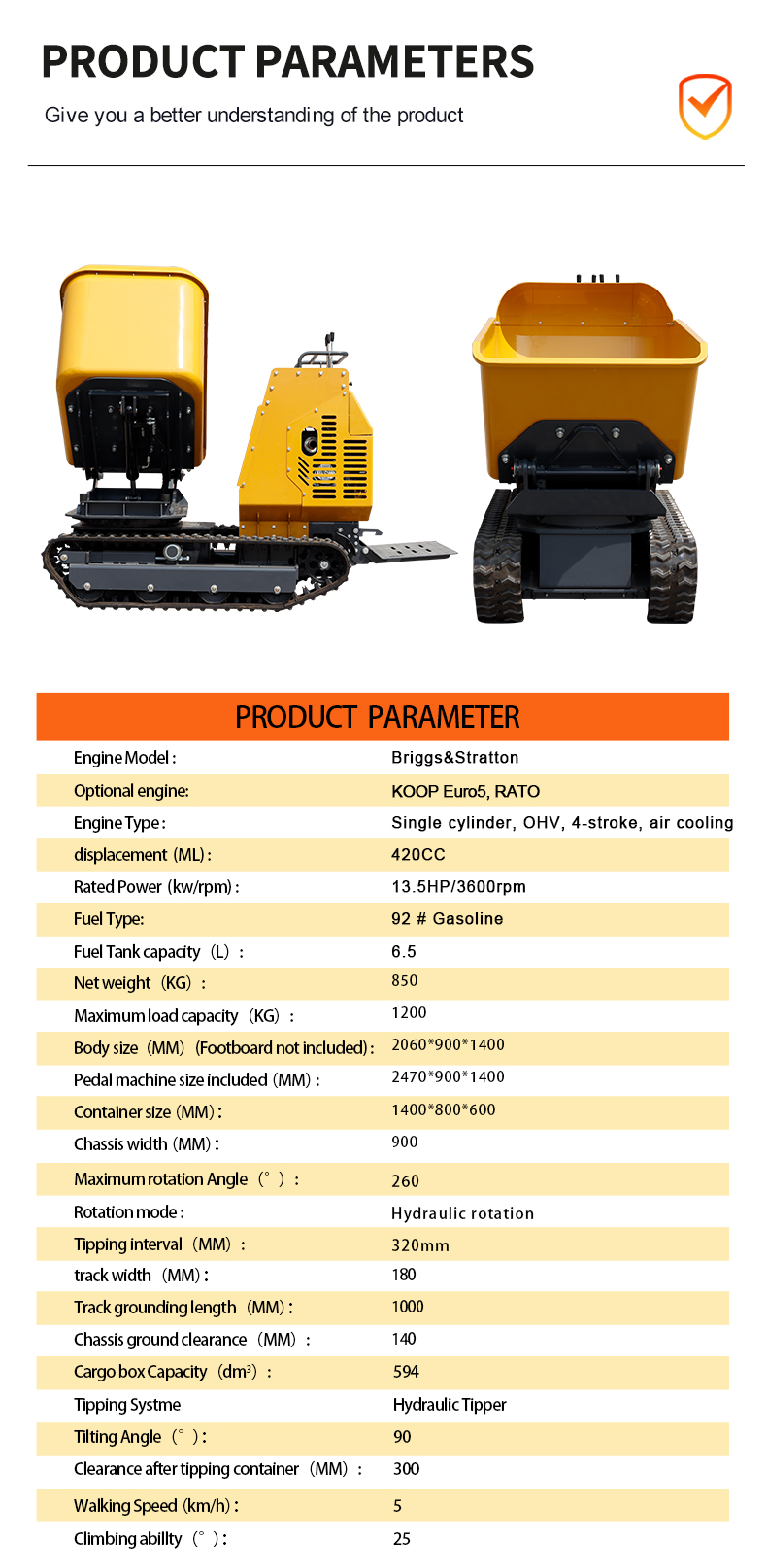

Engine data |
|
|
Engine Model |
Briggs & Stratton Engine Pioneer |
|
Engine Type |
Single cylinder, OHV, 4-stroke, air cooling |
|
displacement |
420CC |
|
Rated Power |
13.5HP/3600rpm |
|
Fuel Type |
92 # Gasoline |
|
Fuel Tank capacity |
6.5L |
|
Weight data |
|
|
Net weight: |
850kg |
|
Maximum load capacity |
1200kg |
|
Body size : (Footboard not included) |
2060*900*1400mm |
|
Pedal machine size included |
2470*900*1400mm |
|
Container size： |
1400*800*600mm |
|
Chassis width： |
900mm |
|
Rotating data |
|
|
Maximum rotation Angle |
260° |
|
Rotation mode: |
Hydraulic rotation |
|
Tipping interval |
320mm |
|
Track data |
|
|
track width： |
180mm |
|
Track grounding length： |
1000mm |
|
Chassis ground clearance: |
140mm |
|
Hopper data |
|
|
Cargo box Capacity |
594dm³ |
|
Tipping Systme |
Hydraulic Tipper |
|
Tilting Angle |
90° |
|
Clearance after tipping container |
300mm |
|
Walk data |
|
|
Walking Speed |
5km/h |
|
Climbing abillty |
25° |
